Simplicity 7114


Simplicity 7114 lawn tractor photo
1979 - 1986
7100 Series
Garden tractor
Series map:
7112
7114
7116
12.0hp
14.0hp
16.0hp
Production
ManufacturerSimplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
914similar Deutz-Allis model
Simplicity 7114 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank3 gal
11.4 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
No photos of the Simplicity 7114 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Wheelbase50.7 inches
128 cm
Front tire16x6.50-8
Rear tire23x8.50-12
Full dimensions and tires ...
Simplicity 7114 attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
7114 Serial Numbers

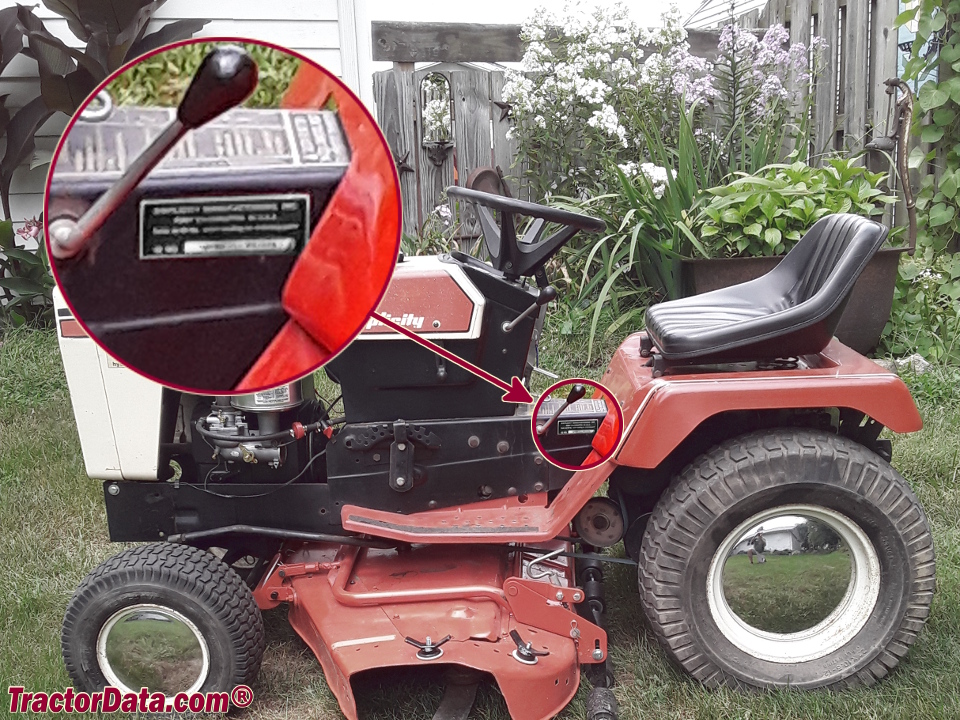

7114 Serial Location
Simplicity 7114 serial number location
Serial number decal on the left side of the tractor frame, ahead of the seat.
Electrical
Groundnegative
Battery volts12
References
7114 references literature
Operator's Manual 7100 Series (1679625) published in 1986
Lawn & Garden Equipment published in 1979, by Simplicity
Riding Mowers and Garden Tractors published in 1982, by Simplicity
