Bolens G-9 855
|
|
| Production | |
| Manufacturer | Bolens |
| Garden tractor | |
| Built in Port Washington, Wisconsin, USA | |
| Bolens G-9 Engine | |
| 8HP Briggs & Stratton 318cc 1-cyl gasoline | |
| Fuel tank | 1.25 gal 4.7 L |
 Engine details ... | |
| Bolens G-9 Transmission | |
| 3-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Drum brakes | |
| Open operator station. |
| Photos | |
| No photos of the Bolens G-9 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | manual |
| Front PTO Type | shaft |
| pulley OptOptional | |
| Engine RPM | 3600@3600 |
| Dimensions & Tires | |
| Wheelbase | 43 inches 109 cm |
| Weight | 600 lbs 272 kg |
| Front tire | 4.80/4.00-8 |
| Rear tire | 23x8.50-12 |
 Full dimensions and tires ... | |
| Bolens G-9 attachments | |
| 38" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| G-9 Serial Numbers | |
| Location: | Serial number plate on the left side of the hood support |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

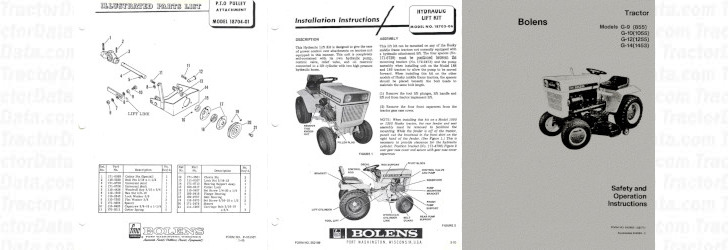

| References | |
 | |
| PTO Pulley Attachment 18704 (551567) published in 1965 | |
| Installation Instructions Hydraulic Lift Kit 18703 (552189) published in 1971 | |
| Operation Instructions (552963) published in 1977 |
