Bolens G-10 1055

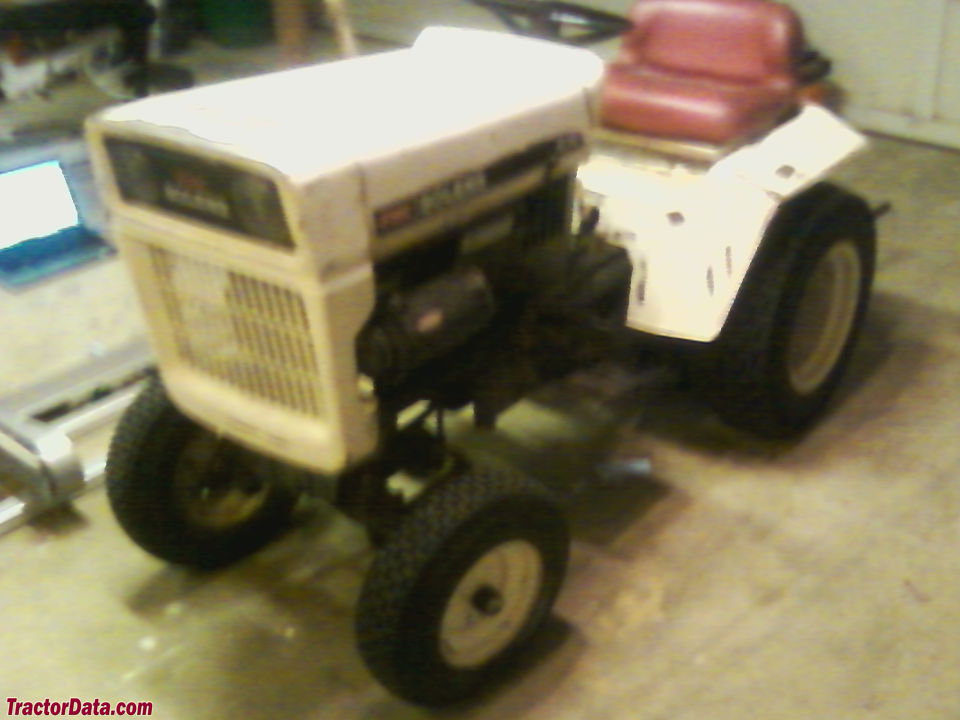

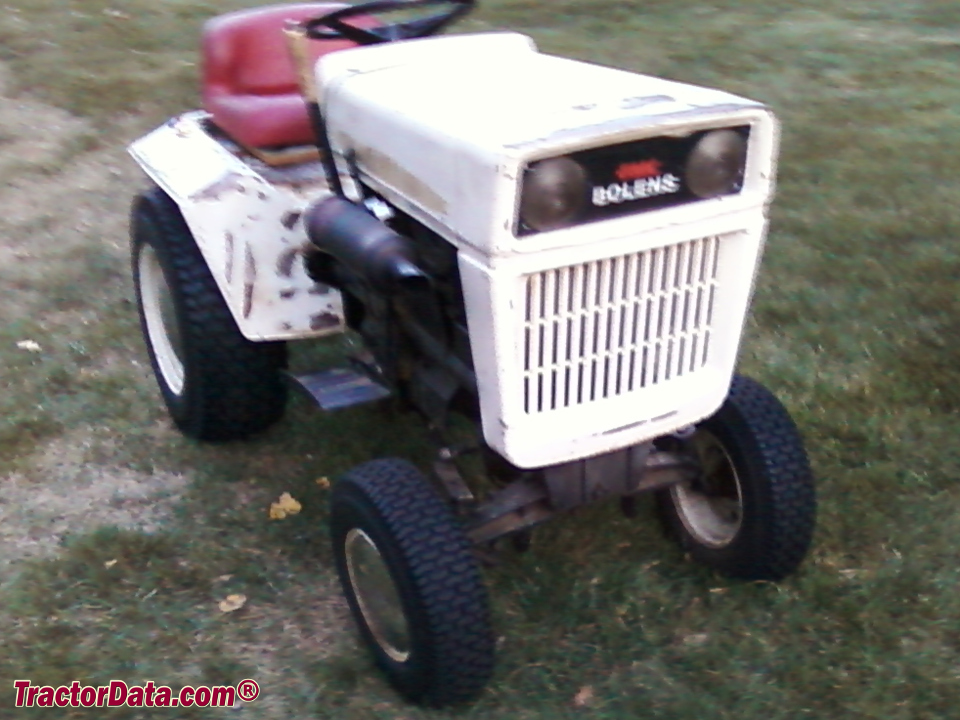

Bolens G-10 1055 lawn tractor photo
1973 - 1977
Tube Frame Series
Garden tractor
Production
ManufacturerBolens
TypeGarden tractor
Bolens G-10 Engine
10HP Tecumseh 388cc 1-cyl gasoline
Fuel tank1.25 gal
4.7 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
Brakesshoe
CabOpen operator station.
Power Take-off (PTO)
Front PTOindependent
Clutchmechanical
Front RPM3600
Dimensions & Tires
Wheelbase42.5 inches
107 cm
Weight600 lbs
272 kg
Front tire4.80/4.00-8
Rear tire23-8.50x12
Full dimensions and tires ...
Bolens G-10 attachments
38" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
Battery AH24
References

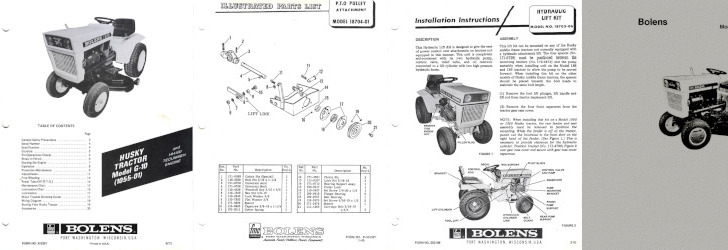

G-10 1055 reference literature
Lawn and Garden Tractors published in 1973, by Bolens
Lawn and Garden Tractors published in 1975, by Bolens
Lawn and Garden Tractors published in 1976, by Bolens
