Lawn Tractors > Simplicity > Landlord 9HP

Simplicity Landlord 9HP



Simplicity Landlord 9HP lawn tractor photo
1964 - 1965
Landlord Series
Garden tractor
Series map:
Landlord 9HP
9.0hp
Production
ManufacturerSimplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
990308manual start
990314electric start
990350mechanical lift
990351hydraulic lift
Simplicity Landlord 9HP Engine
9HP Briggs & Stratton 392cc 1-cyl gasoline
Engine details ...
Simplicity Landlord 9HP Transmissions
3-speed gear
6-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Photos

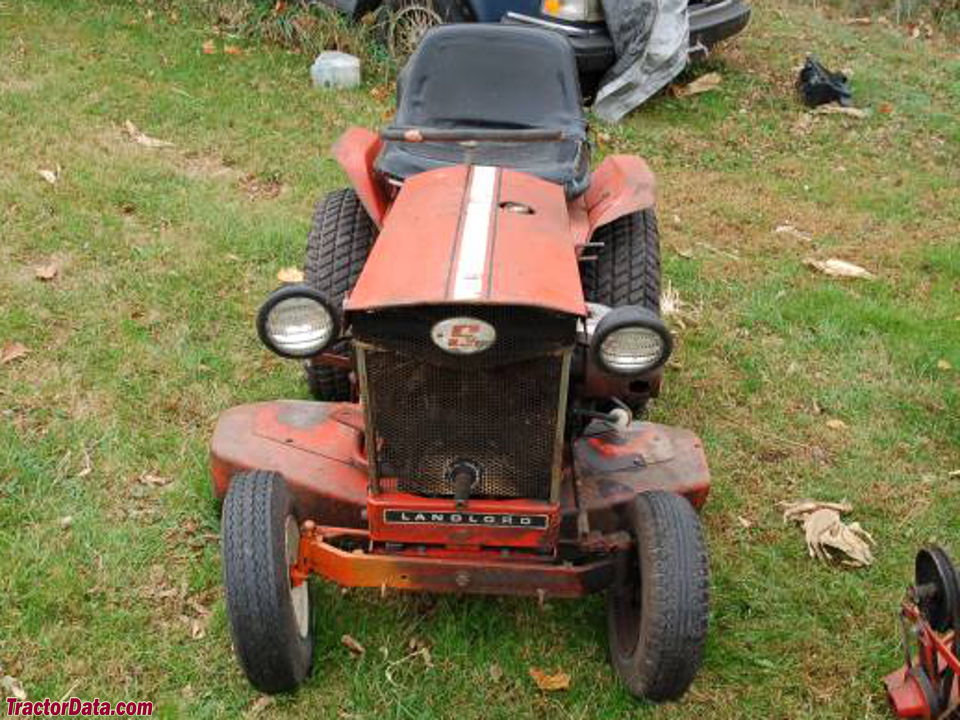

Simplicity Landlord 9HP
Simplicity Landlord 9HP photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchmechanical idler pulley
Dimensions & Tires
Wheelbase44.5 inches
113 cm
Weight680 lbs
308 kg
Front tire4.80x8
Rear tire8-12
Full dimensions and tires ...
Simplicity Landlord 9HP attachments
32" mid-mount mower deck
42" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
Landlord 9HP references literature
Do it with Simplicity published in 1964
