Springfield 66TE-10
|
|
| Production | |
| Manufacturer | Springfield (a part of Quick Manufacturing) |
| Garden tractor | |
| Built in Springfield, Ohio, USA | |
| Springfield 66TE-10 Engine | |
| 10HP Kohler 391cc 1-cyl gasoline | |
 Engine details ... |
| Springfield 66TE-10 Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical band brakes | |
| Open operator station. |
| Photos | |
| No photos of the Springfield 66TE-10 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Dimensions & Tires | |
| Wheelbase | 46 inches 116 cm |
| Weight | 570 lbs 258 kg |
| Front tire | 6.50-8 |
| Rear tire | 8.00-12 |
 Full dimensions and tires ... | |
| Springfield 66TE-10 attachments | |
| 42" mid-mount mower deck | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

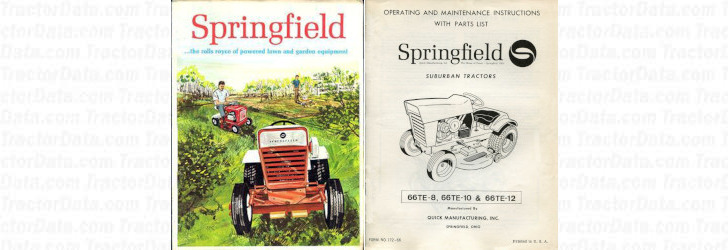

| References | |
 | |
| The Rolls Royce of Powered Lawn and Garden Equipment published in 1966, by Springfield | |
| Operating and Maintenance Instructions Suburban Tractors (172-66) published in 1966 |
