Sears Suburban 10 917.99410 Transmission

Sears Suburban 10 917.99410 lawn tractor photo
1965 - 1967
Model year
Suburban Series
Garden tractor
Roper built
Series map:
Suburban 10
Suburban 12
Typebelt-driven gear
Gears6 forward and 2 reverse
Oil capacity5 qts
4.7 L
Oil type
SAE 30
Oil change500 h
Three gears (1-3) plus reverse (R) with two ranges (low-high).

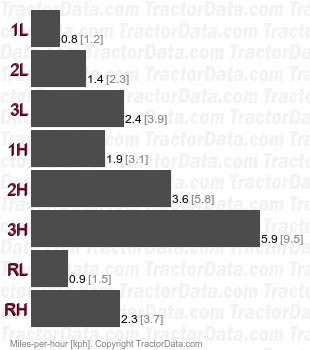

Suburban 10 917.99410  belt-driven gear speeds
