Sears Suburban 10 917.99410 Engine

Sears Suburban 10 917.99410 lawn tractor photo
1965 - 1967
Model year
Suburban Series
Garden tractor
Roper built
Series map:
Suburban 10
Suburban 12
Engine Detail
Tecumseh HH100
air-cooled horizontal-shaft
Displacement389 cc
23.75 ci
Bore/Stroke3.3125x2.75 inches
84 x 70 mm
Power (gross)10 hp
7.5 kW
Fuel systemcarburetor
Rated RPM3600
Startermanual recoil
Starter volts12
Engine Oil

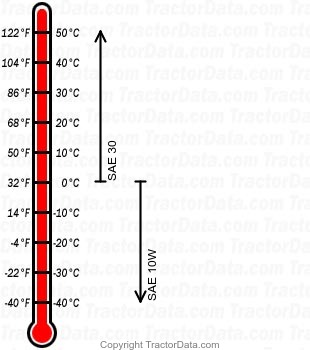

Suburban 10 917.99410 gasoline engine oil chart
Oil change25 h
