Toro Wheel Horse 314-8


Toro Wheel Horse 314-8 lawn tractor photo
1993 - 2001
Classic 300 Series
Garden tractor
Production
ManufacturerToro
Garden tractor
Variants
314-8gear
314-Hhydrostatic
Toro 314-8 Engines
14HP Kohler 512cc 1-cyl gasoline
14HP Kohler 398cc 1-cyl gasoline
Fuel tank2.25 gal
8.5 L
Engine details ...
Mechanical
Two-wheel drive
Open operator station.
Dimensions & Tires
Wheelbase45.5 inches
115 cm
Weight624 lbs
283 kg
Front tire16x6.50
Rear tire23x.9.50
Full dimensions and tires ...
Toro 314-8 attachments
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
314-8 Serial Number Location

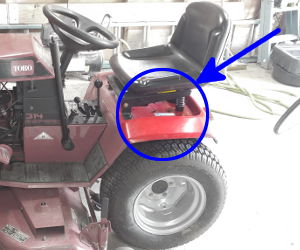

Toro 314-8 serial number location
Serial number decal below the seat on the left side of the tractor.
314-8 Serial Numbers
19936900001 (73400)
19945900001 (73400)
19955900001 (73400)
19966900001 (73400/73402)
19977900001 (73402)
19988900001 (73448)
19999900001 (73449)
2000200000001 (73449)
2001210000001 (73449)

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery CCA210
Battery volts12
References

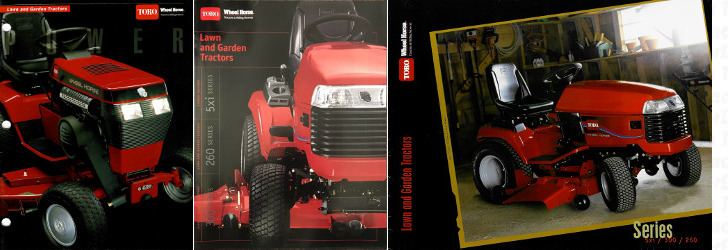

Wheel Horse 314-8 references literature
Lawn and Garden Tractors published in 1996, by Toro
Lawn and Garden Tractors published in 1998, by Toro
Lawn and Garden Tractors published in 1999, by Toro
