Lawn Tractors > Simplicity > 9020 PowrMax

Simplicity 9020 PowrMax

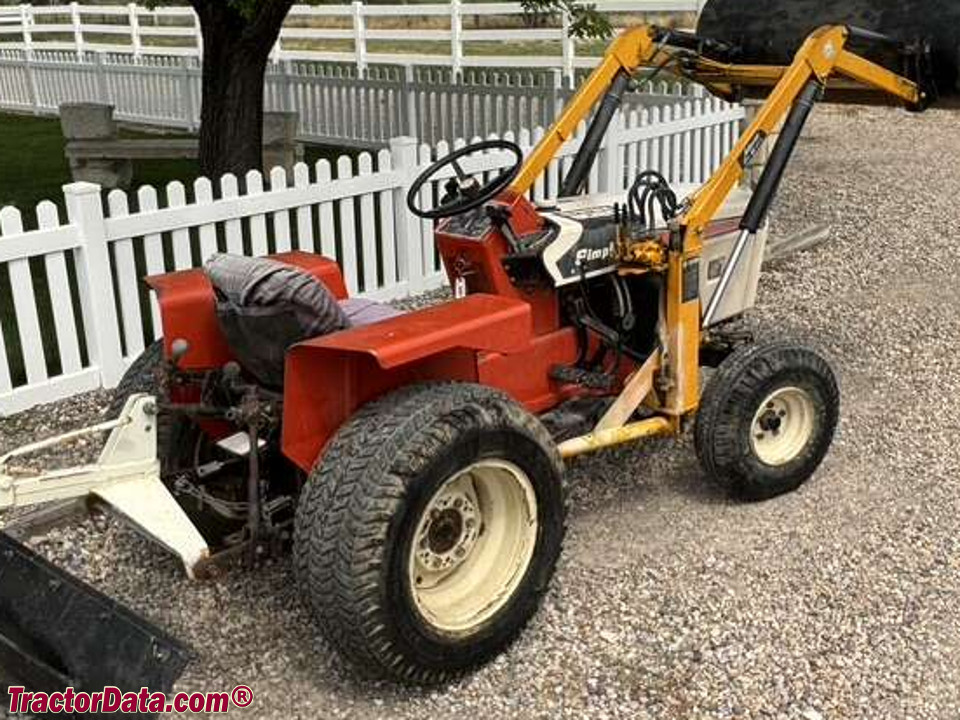

Simplicity 9020 PowrMax lawn tractor photo
1975 - 1980
PowrMax Series
Garden tractor
Series map:
9020
19.5hp
Production
ManufacturerSimplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
Twin 20similar Montgomery Ward model
Simplicity 9020 Engine
19.5HP Onan 816cc 2-cyl gasoline
Fuel tank3.8 gal
14.4 L
Engine details ...
Simplicity 9020 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Photos
Simplicity 9020 with loader, from 1978 catalog.
Simplicity 9020 photos...
Hydraulics
Pressure500 psi
34.5 bar
Total flow2.5 gpm
9.5 lpm
Tractor hitch
Rear Type0
Power Take-off (PTO)
Rear PTOindependent
Clutchelectric
Rear RPM2000
Front PTOindependent
Clutchelectric
Front RPM3600
Dimensions & Tires
Wheelbase56 inches
142 cm
Weight1300 lbs
589 kg
Front tire20x8.00-10
Rear tire29x12.00-15
Full dimensions and tires ...
Simplicity 9020 attachments
60" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps20
Charging volts12
Battery volts12
Battery AH45
References

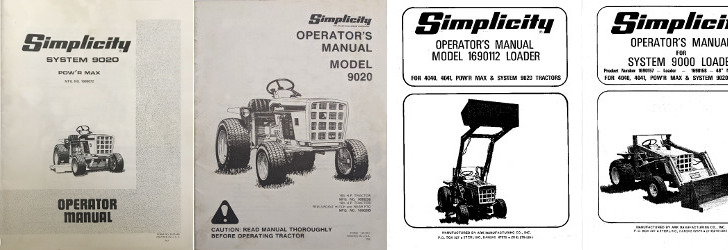

9020 PowrMax references literature
Operator Manual System 9020 Pow'r Max (1651689) published in 1974
Operator's Manual Model 9020 (1657027) published in 1978
Lawn & Garden Power Equipment published in 1976, by Simplicity
Lawn & Garden Equipment published in 1978, by Simplicity
Lawn & Garden Equipment published in 1979, by Simplicity
