Cub Cadet 580
|
|
| Production | |
| Manufacturer | Cub Cadet (a part of MTD) |
| Garden tractor | |
| Variants | |
| 582 Special | IH red |
| 580 | Cub Cadet yellow |
| Cub Cadet 580 Engine | |
| 16HP Briggs & Stratton 655cc 2-cyl gasoline | |
| Fuel tank | 4 gal 15.1 L |
 Engine details ... | |
| Cub Cadet 580 Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| Disc brakes | |
| Open operator station. | |

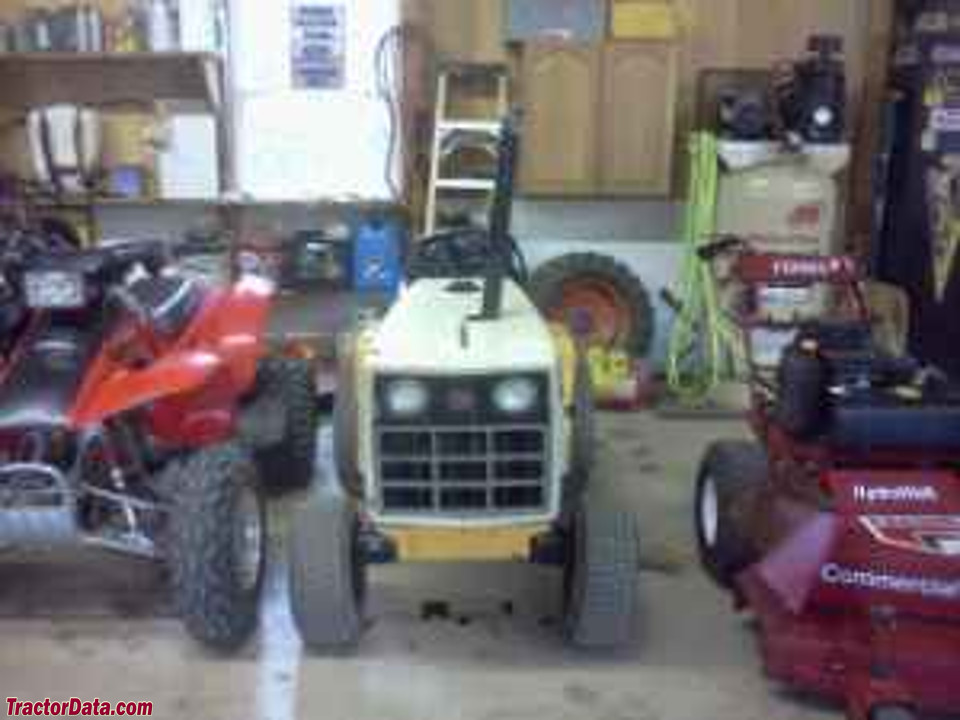

| Photos | |
 | |
 Cub Cadet 580 photos... | |
| Dimensions & Tires | |
| Wheelbase | 44 inches 111 cm |
| Front tire | 16x6.50-8 |
| Rear tire | 23x10.50-12 |
 Full dimensions and tires ... | |
| Cub Cadet 580 attachments | |
| 44" mid-mount mower deck | |
 Attachment details ... |
| 580 Serial Numbers | |
| Location: | Serial number plate on the left side of the tractor frame, above the foot rest. |
| 1982 | 700000 |
| 1983 | 712900 |
| 1984 | 724525 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery volts | 12 |
| References | |
 | |
| Tractors published in 1984, by Cub Cadet |
