| | 1998 - 1999 |
| 3000 Series | | Garden tractor |
|
Series map:
3205
3225
20.0hp
22.0hp
| Engine Detail |
| Kohler CH22S |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft V-Twin |
| Displacement | 673 cc
41.1 ci
|
| Bore/Stroke | 3.15x2.64 inches
80 x 67 mm
|
| Power (gross) | 22 hp
16.4 kW
|
| Compression | 8.5:1
|
| Rated RPM | 3450
|
| Idle RPM | 1450-3600
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | Champion RC12YC
|

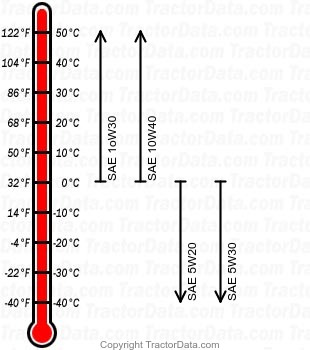

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 100 h
|
