| | 1998 - 1999 |
| 3000 Series | | Garden tractor |
|
Series map:
3186
3205
3225
18.0hp
20.0hp
22.0hp
| Engine Detail |
| Kawasaki FD620 |
| gasoline |
| 2-cylinder |
| liquid-cooled horizontal-shaft V-Twin |
| Displacement | 617 cc
37.65 ci
|
| Bore/Stroke | 2.99x2.66 inches
76 x 68 mm
|
| Power (gross) | 20 hp
14.9 kW
|
| Compression | 9.0:1
|
| Rated RPM | 3450
|
| Idle RPM | 1450-3600
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 2.8 qts
2.6 L
|
| Sparkplug | NGK BMR 4A
|

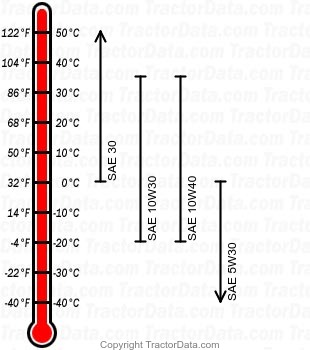

| Engine Oil |
|
| Oil capacity | 1.585 qts
1.5 L
|
| Oil change | 100 h
|

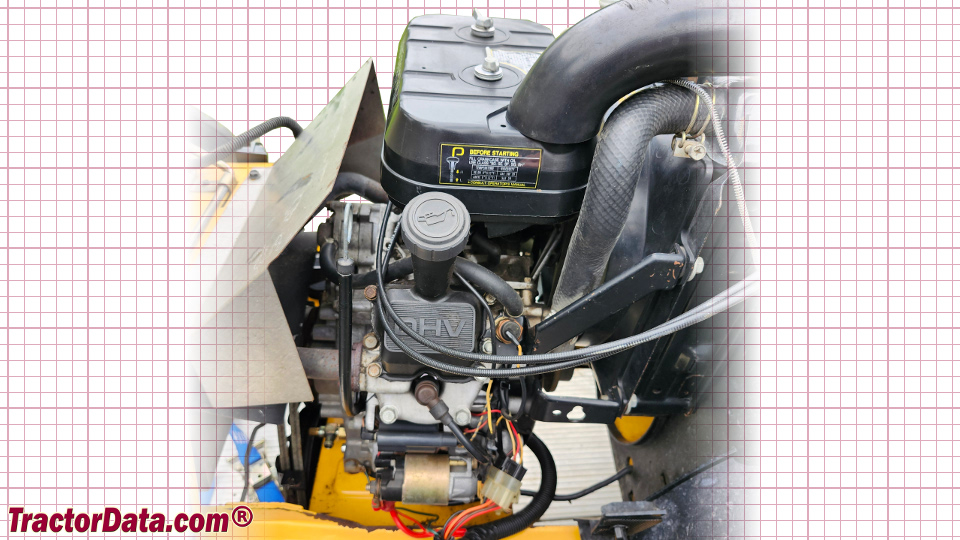

| Cub Cadet 3205 Engine |
 |
| Image courtesy of Dan La Pointe |
