Lawn Tractors > John Deere > D150

John Deere D150 Engine



John Deere D150 lawn tractor photo
2011
D100 Series
Lawn tractor
Series map:
D140
D150
D155
22.0hp
22.0hp
24.0hp
Engine Detail
Briggs & Stratton ELS 40
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement655 cc
40 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power (gross)22 hp
16.4 kW
Air cleanercartridge
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.010 inches
0.254 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

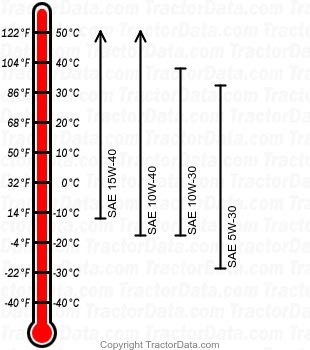

D150 gasoline engine oil chart
Oil capacity2 qts
1.9 L

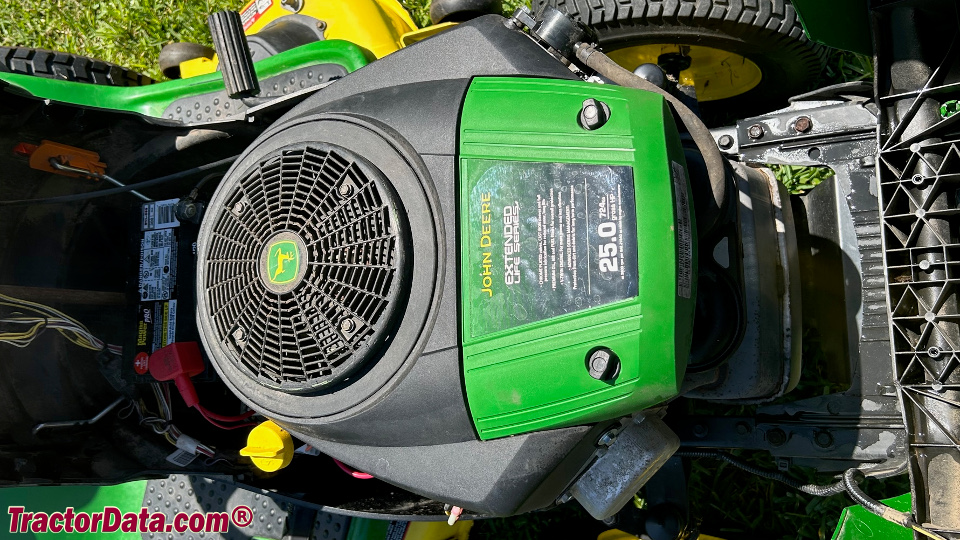

John Deere D150 Engine
John Deere D150 engine image
Image courtesy of Lanny Hitchcock
