John Deere 116H Transmission


John Deere 116H lawn tractor photo
1983 - 1985
100 Lawn Series
Lawn tractor
Series map:
116
116H
16.0hp
16.0hp
Transmission
ManufacturerEaton
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity1 qts*Hydrostatic
0.9 L
 1.25 qts*Differential
1.2 L
Oil type
Hy-Gard Low Vis
Single-range hydrostatic transmission operated with right-hand control lever. Eaton hydrostatic with a Peerless differential. The differential uses 75W-90 gear oil and is servicable with drain plugs.

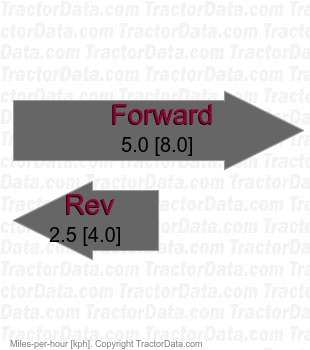

Speeds
116H  belt-driven hydrostatic speeds
