John Deere 116 Transmission


John Deere 116 lawn tractor photo
1981 - 1985
100 Lawn Series
Lawn tractor
Series:112L116116H
Transmission
Typebelt-driven gear
Gears5 forward and 1 reverse
Oil capacity1.25 qts
1.2 L
Peerless gear transmission operated with gear selector and clutch pedal. Clutch must be used to change gears but tractor does not need to be stopped to change forward gears. Tractor should be stopped before changing forward/reverse direction.

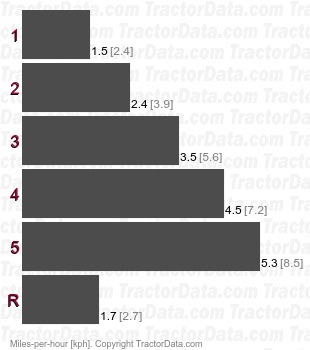

Speeds
116  belt-driven gear speeds
