Lawn Tractors > Ingersoll > 3118

Ingersoll 3118



Ingersoll 3118 tractor photo
1992 - 1993
3100 Series
Garden tractor
Series map:
3118
3118D
18.0hp
18.0hp
Production
ManufacturerIngersoll
Garden tractor
Ingersoll 3118 Engine
18HP Onan 781cc 2-cyl gasoline
Engine details ...
Ingersoll 3118 Transmission
hydraulic drive
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Mechanical band brakes
Open operator station.

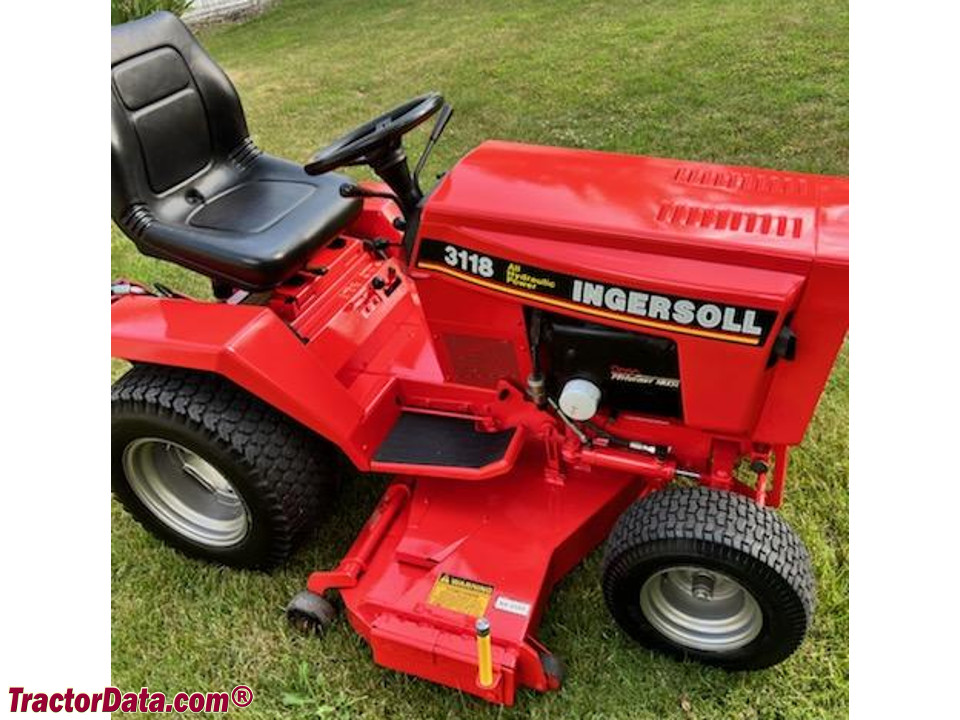

Photos
Ingersoll 3118
Ingersoll 3118 photos...
Capacity
Fuel3 gal
11.4 L
Hydraulic system1.5 gal
5.7 L
Hydraulics
Typeopen center
Capacity1.5 gal
5.7 L
Pressure2800 psi
193.1 bar
Rear valves2
Pump flow9.5 gpm
36.0 lpm
Total flow13.75 gpm
52.0 lpm
Steering flow2.25 gpm
8.5 lpm
Steering press.720 psi
49.6 bar
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight650 lbs
294 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Ingersoll 3118 attachments
44" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
Attachment details ...
3118 Serial Number Location
Ingersoll 3118 serial number location
Serial number plate on the left side of the tractor frame, above the foot rest.
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps20
Battery CCA300
Battery volts12
References
3118 references literature
Operator;s Manual Compact Tractors 3118, 4116, 4118, 4120 (8-56800) published in 1992
