J.I. Case 226

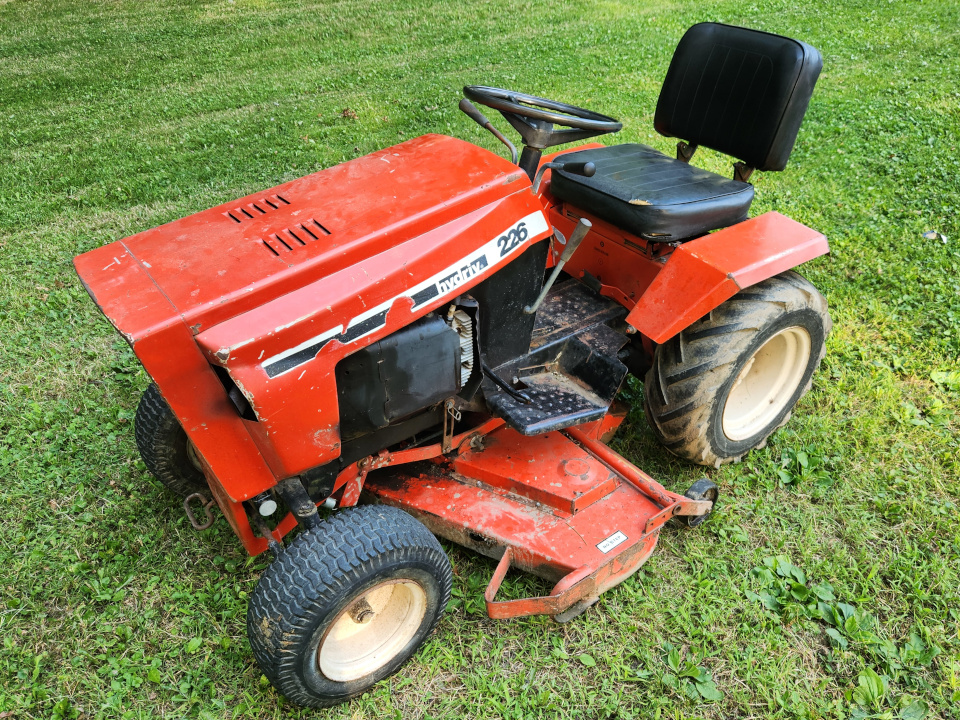

J.I. Case 226 lawn tractor photo
1984 - 1988
200 Series
Garden tractor
Ingersoll built
Series map:
224
226
14.0hp
16.0hp
Production
DistributorJ.I. Case
ManufacturerIngersoll
Garden tractor
Built in Winneconne, Wisconsin, USA
J.I. Case 226 Engine
16HP Onan 709cc 2-cyl gasoline
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Photos
No photos of the J.I. Case 226 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel3 gal
11.4 L
Hydraulic system1.25 gal
4.7 L
Hydraulics
Typeopen center
Capacity1.25 gal
4.7 L
Tractor hitch
Typesleeve hitch OptOptional
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight613 lbs
278 kg
Front tire6.50-8
Rear tire8.50-12
Full dimensions and tires ...
J.I. Case 226 attachments
38" mid-mount mower deck
44" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
226 Serial Numbers
Location:Serial number plate on dashboard, below steering column.
Electrical
Groundnegative
Battery volts12
References
226 references literature
Case Lawn/Garden Tractors published in 1984, by J.I. Case
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case
Lawn & Garden Tractors published in 1984, by Ingersoll
