J.I. Case 222 Engine


J.I. Case 222 lawn tractor photo
1969 - 1988
200 Series
Garden tractor
Series map:
220
222
224
10.0hp
12.0hp
14.0hp
Engine Detail
Kohler K301AS
gasoline
1-cylinder
air-cooled
Displacement476 cc
29.07 ci
Bore/Stroke3.375x3.25 inches
86 x 83 mm
Power12 hp
8.9 kW
Compression6.6:1
Rated RPM3600
Starter volts12
Sparkplug gap0.035 inches
0.889 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.009 inches*Cold
0.229 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

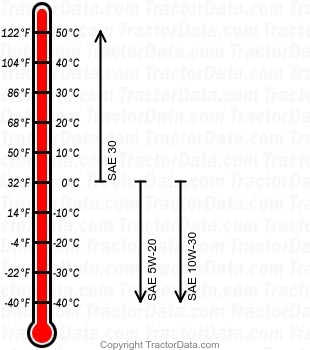

222 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
