Lawn Tractors > J.I. Case > 220

J.I. Case 220 Engine



J.I. Case 220 tractor photo
1968 - 1988
200 Series
Garden tractor
Series map:
210
220
222
10.0hp
10.0hp
12.0hp
Engine Detail
Kohler K241AS
gasoline
1-cylinder
air-cooled
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power (gross)10 hp
7.5 kW
Compression6.2:1
Starterelectric
Starter volts12
Sparkplug gap0.035 inches
0.889 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.009 inches*Cold
0.229 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

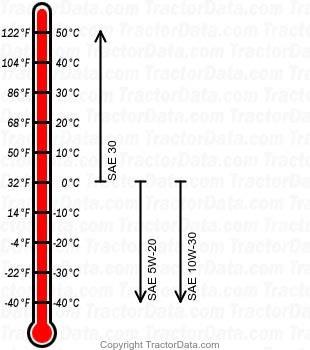

220 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
