J.I. Case 150

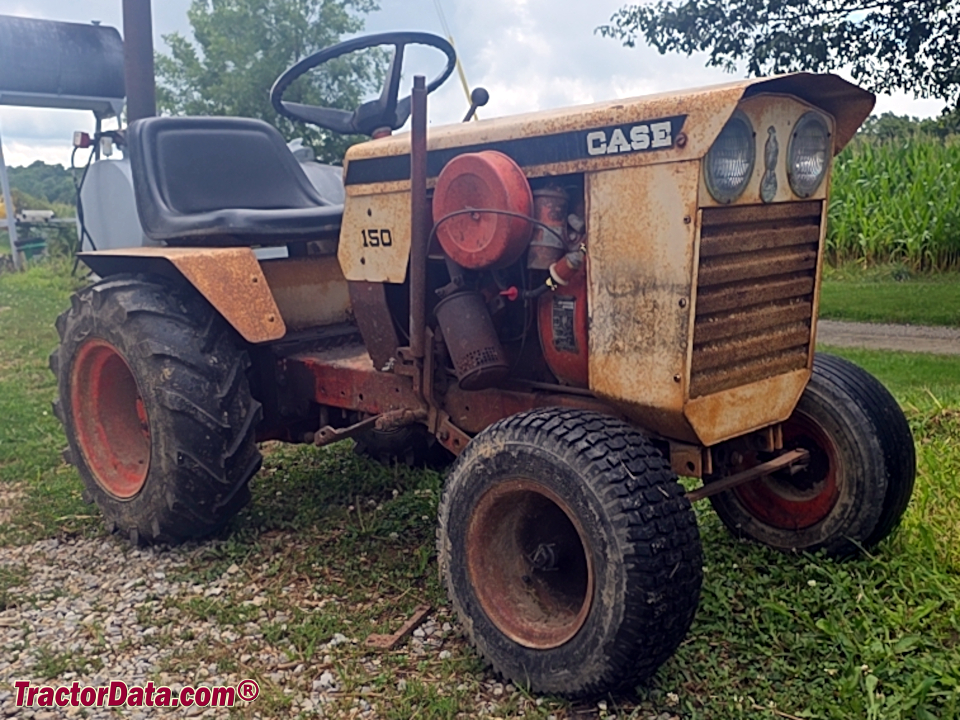

J.I. Case 150 lawn tractor photo
1966
Garden tractor
Series map:
120
150
190
10.0hp
10.0hp
12.0hp
Production
ManufacturerJ.I. Case
Garden tractor
Built in Winneconne, Wisconsin, USA
J.I. Case 150 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank1.25 gal
4.7 L
Engine details ...
Mechanical
Two-wheel drive
Steeringmanual
Hydraulic brakes
Open operator station
Photos
No photos of the J.I. Case 150 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight705 lbs
319 kg
Front tire6.50x8
Rear tire8.50x12
Full dimensions and tires ...
150 Serial Numbers
Location:Serial number plate on dash, below and to the right of the steering column.
Electrical
Groundnegative
Charging systemstarter-generator
Battery volts12
References
150 references literature
Operator's Instruction Manual 150 and 190 Garden Tractors (9-1851)
