Lawn Tractors > Honda > H5518

Honda H5518 Engine



Honda H5518 lawn tractor photo
1991 - 1999
Garden tractor
Series map:
H5013
H5518
13.0hp
18.0hp
Engine Detail
Honda GX640
gasoline
2-cylinder
liquid-cooled
Displacement634 cc
38.7 ci
Bore/Stroke3.00x2.80 inches
76 x 71 mm
Power18 hp
13.4 kW
Fuel systemcarburetor
Air cleanerdry (4192753)
Rated RPM3000
Starterelectric
Starter volts12
Coolant capacity2.9 qts
2.7 L
SparkplugNGK BPR5ES-11
Sparkplug gap0.040 inches
1.016 mm
Intake valve clearance0.010 inches
0.254 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

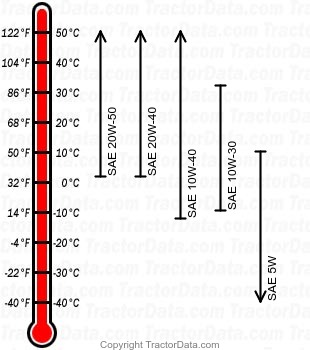

H5518 gasoline engine oil chart
Oil capacity2.1 qts
2.0 L
