Lawn Tractors > Honda > H5013

Honda H5013 Engine



Honda H5013 lawn tractor photo
1991 - 1999
Garden tractor
Series map:
H5013
H5518
13.0hp
18.0hp
Engine Detail
Honda GX390
gasoline
1-cylinder
air-cooled
Displacement388 cc
23.7 ci
Bore/Stroke3.50x2.50 inches
89 x 64 mm
Power13 hp
9.7 kW
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

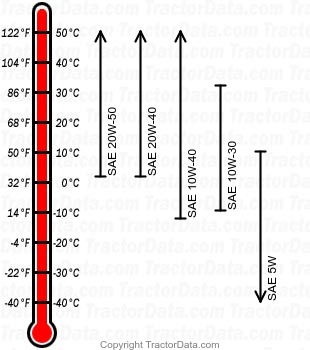

H5013 gasoline engine oil chart
Oil capacity1.2 qts
1.1 L
