Lawn Tractors > Honda > RT5000

Honda RT5000

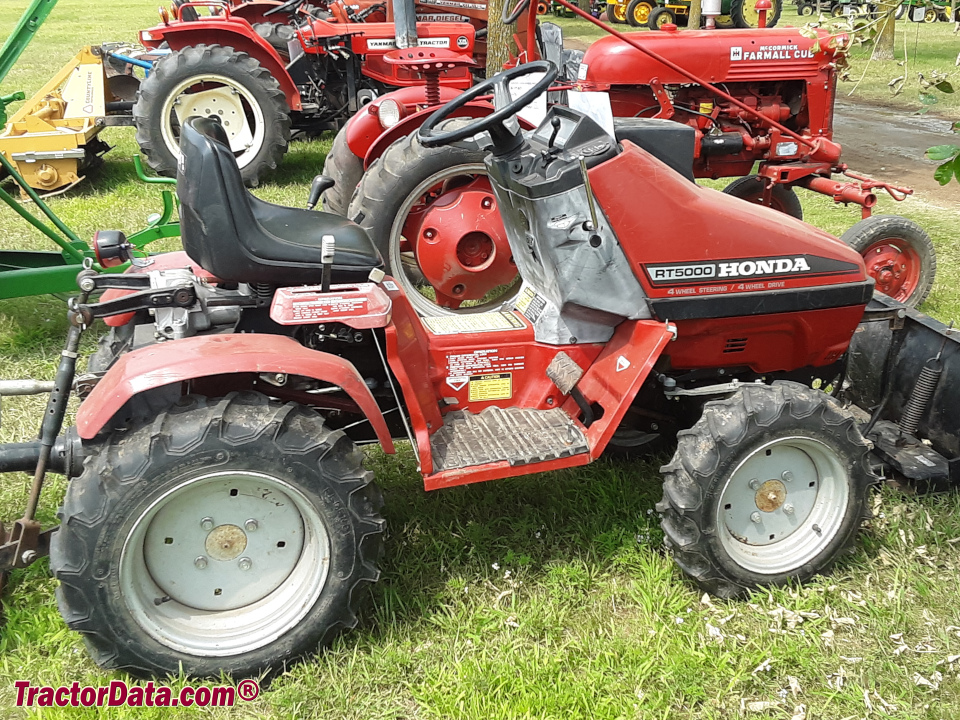

Honda RT5000 tractor photo
1986 - 1989
Garden tractor
Series map:
RT5000
11.0hp
Production
ManufacturerHonda
Garden tractor
Honda RT5000 Engine
11HP Honda 339cc 1-cyl gasoline
Engine details ...
Honda RT5000 Transmission
8-speed gear
Transmission details ...
Mechanical
Two- or four-wheel drive
Steeringmanual four-wheel
Mechanical shoe brakes
Photos
Honda RT5000
Honda RT5000 photos...
Capacity
Fuel2.2 gal
8.3 L
Hydraulic system0.53 gal
2.0 L
Hydraulics
Capacity0.53 gal
2.0 L
Pressure1280 psi
88.3 bar
Tractor hitch
Rear Type0
Rear lift (at ends)550 lbs
249 kg
Front lift550 lbs
249 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type2000
Front PTOindependent
Front PTO Type2650
Dimensions & Tires
Wheelbase47.8 inches
121 cm
Weight959 lbs
435 kg
Front tire20x7.00-12.2
Rear tire24x8.00-14.2
Full dimensions and tires ...
Honda RT5000 attachments
46" mid-mount mower deck
snowblower
Attachment details ...
Electrical
Groundnegative
Battery volts12
Battery AH30
