Steiner 430

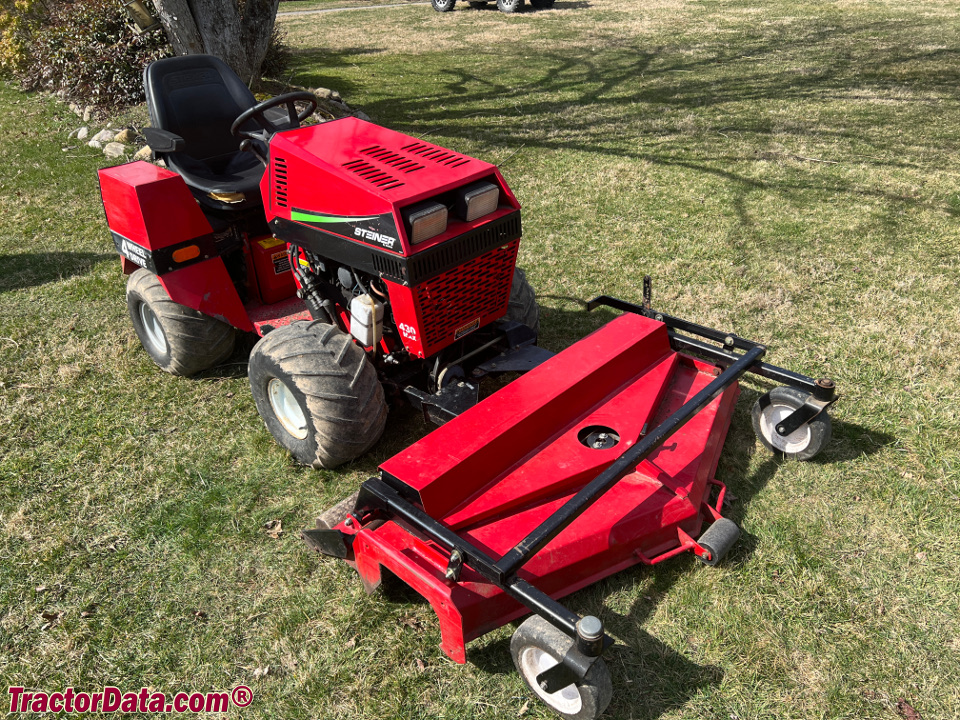

Steiner 430 lawn tractor photo
1997 - 2012
Garden tractor
Production
ManufacturerSteiner
Garden tractor
Built in Johnson Creek, Wisconsin, USA
Variants
75-70002Onan Performer P220G 20hp gas
75-70004Kohler Command CH25QS 25hp gas
75-70005Kohler CH740-QS 27hp gas
75-70006Kubota WG750 21hp gas
75-70006Kubota WG752 25hp gas
75-70010Onan Performer P220G 20hp gas
75-70010AGenerac 33hp gas
75-70011Kohler CH750 30hp gas
Steiner 430 Engines
21HP Kubota 719cc 3-cyl diesel
25HP Kubota 740cc 3-cyl gasoline
33HP Generac 2-cyl gasoline
30HP Kohler 753cc 2-cyl gasoline
Fuel tank6 gal
22.7 L
Engine details ...
Mechanical
Four-wheel drive
Articulated power steering
Dry disc brakes
Open operator station.
Tractor hitch
Rear Type0 OptOptional
TypeSteiner Quick-Hitch
Dimensions & Tires
Wheelbase38 inches
96 cm
Weight1000 to 1100 pounds
Front tire20x10.00-8
Rear tire20x10.00-8
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
Battery Group26
References
430 references literature
Uniquely engineered for unmatched versatility published in 1997, by Steiner
