John Deere LA175 Engine


John Deere LA175 lawn tractor photo
2008 - 2010
LA105 Series
Lawn tractor
Series map:
LA165
LA175
24.0hp
26.0hp
Engine Detail
Briggs & Stratton
gasoline
2-cylinder
air-cooled
Displacement724 cc
44.2 ci
Bore/Stroke3.12x2.89 inches
79 x 73 mm
Power (gross)26 hp
19.4 kW
Air cleanerpaper and foam elements
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

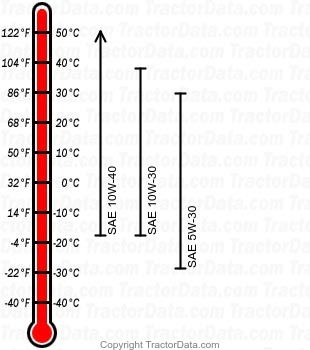

LA175 gasoline engine oil chart
Oil capacity2 qts
1.9 L
John Deere LA175 Engine
John Deere LA175 engine image
Image courtesy of Derek Woodward
