John Deere LA165 Engine

John Deere LA165 lawn tractor photo
2008 - 2010
LA105 Series
Lawn tractor
Engine Detail
Briggs & Stratton
Displacement:724 cc
44.2 ci
Bore/Stroke:3.12x2.89 inches
79 x 73 mm
Power (gross):24 hp
17.9 kW
Air cleaner:paper and foam elements
Starter volts:12
Sparkplug gap:0.030 inches
0.762 mm
Intake valve clearance:0.005 inches
0.127 mm
Exhaust valve clearance:0.005 inches
0.127 mm
Engine Oil

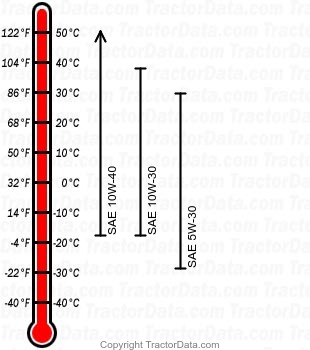

LA165 gasoline engine oil chart
Oil capacity:2 qts
1.9 L
