John Deere LX173 Transmission

John Deere LX173 lawn tractor photo
1996 - 1998
LX 100 Series
Lawn tractor
TransmissionPeerless 801
Typebelt-driven gear
Gears5 forward and 1 reverse
Oil capacity1.1 qts
1.0 L
Oil changefill as needed

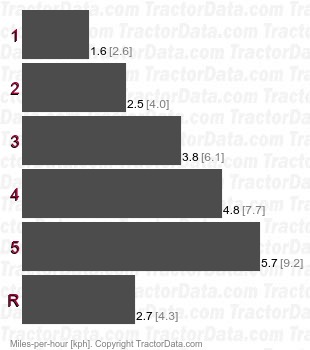

LX173 801 belt-driven gear speeds
Page information
Contact: Peter Easterlund
Updated on July 7, 2021
