John Deere LX172 Transmission


John Deere LX172 lawn tractor photo
1991 - 1997
LX 100 Series
Lawn tractor
Series map:
LX172
LX173
14.0hp
15.0hp
Transmission
TransmissionPeerless 801
Typebelt-driven gear
Gears5 forward and 1 reverse
Oil capacity1.1 qts
1.0 L
Oil changefill as needed

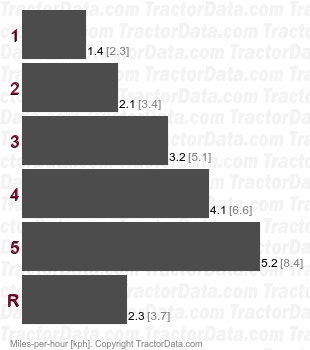

Speeds
LX172 801 belt-driven gear speeds
Shift Pattern
John Deere LX172 transmission controls
LX172 Transmission Controls
John Deere LX172 transmission controls
1Clutch
2Throttle
3Brake
4Parking brake
5Gear shift
