Simplicity 7790H Engine


Simplicity 7790H lawn tractor photo
Garden tractor

Note: the Simplicity model 7790H is the same as the Allis Chalmers 920. The following data is from the 920 listing.
Engine Detail
Lombardini 10LD400-2
diesel
2-cylinder
air-cooled
Displacement790 cc
48.21 ci
Bore/Stroke3.386x2.677 inches
86 x 68 mm
Power18.5 hp
13.8 kW
Air cleanerdry
Rated RPM2800
Starterelectric
Starter volts12
Engine Oil

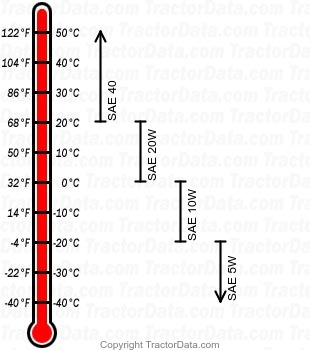

7790H diesel engine oil chart
Oil change300 h
