Wheel Horse B-165

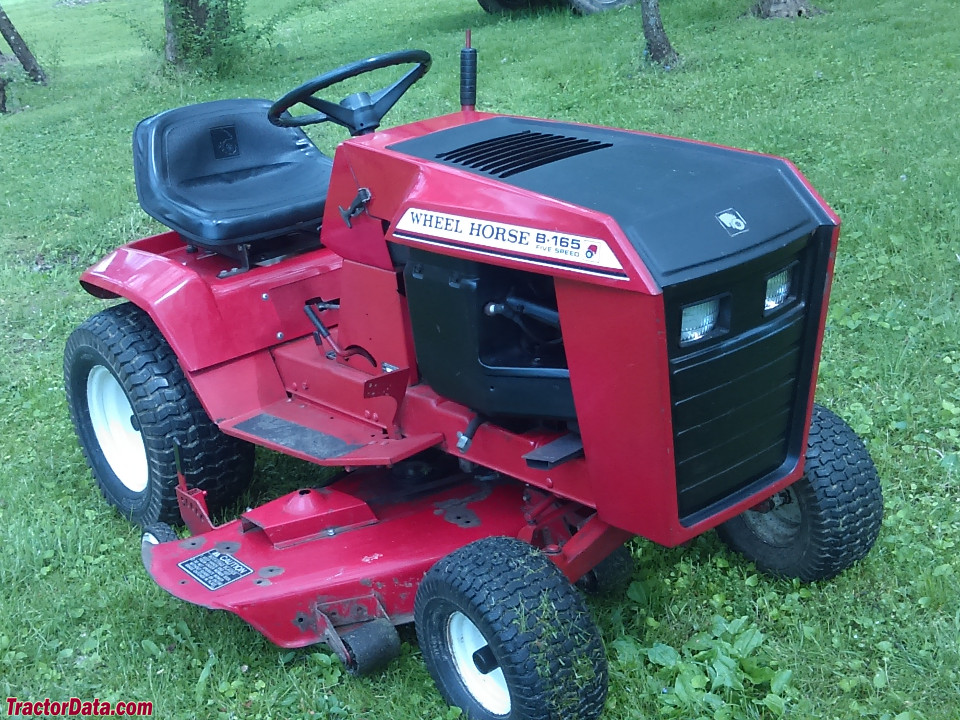

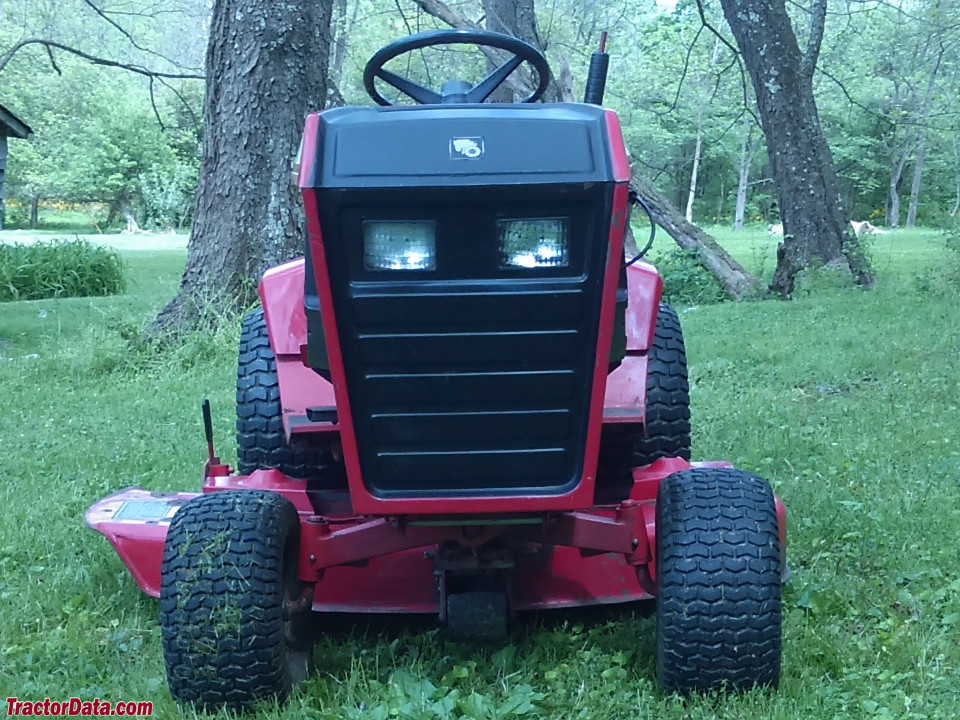

Wheel Horse B-165 lawn tractor photo
1980 - 1984
B Series
Lawn tractor
Series:B-115B-165
Production
ManufacturerWheel Horse
TypeLawn tractor
FactorySouth Bend, Indiana, USA
Wheel Horse B-165 Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank1.5 gal
5.7 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Power Take-off (PTO)
Front PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase45.5 inches
115 cm
Weight380 lbs
172 kg
Front tire13x6.50-6
Rear tire20x10.00-10
Full dimensions and tires ...
Wheel Horse B-165 attachments
42" mid-mount mower deck
snowblower
blade
Attachment details ...
B-165 Serial Numbers
198002-16BP01 (gear)
198102-16BP02 (gear)
198102-16BP03 (gear)
198202-16BP04 (gear)
198312-16BP01 (gear)
198202-16BE01 (hydro)
198312-16BE01 (hydro)
198412-16BE02 (hydro)

How to read a serial number table...
B-165 Serial Location
Wheel Horse B-165 serial number location
Serial number plate on right side of tractor.
Electrical
Groundnegative
Charging amps3
Battery volts12
