Kubota G4200
|
|
| Production | |
| Manufacturer | Kubota |
| Garden tractor | |
| Original price | $3,950 (1984 gear ) |
| $4,350 (184 hydro ) | |
| Kubota G4200 Engine | |
| 12HP Kubota 424cc 2-cyl diesel | |
| Fuel tank | 2.1 gal 7.9 L |
 Engine details ... | |
| Kubota G4200 Transmissions | |
| hydrostatic | |
| 3-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Disc brakes | |
| Open operator station. |

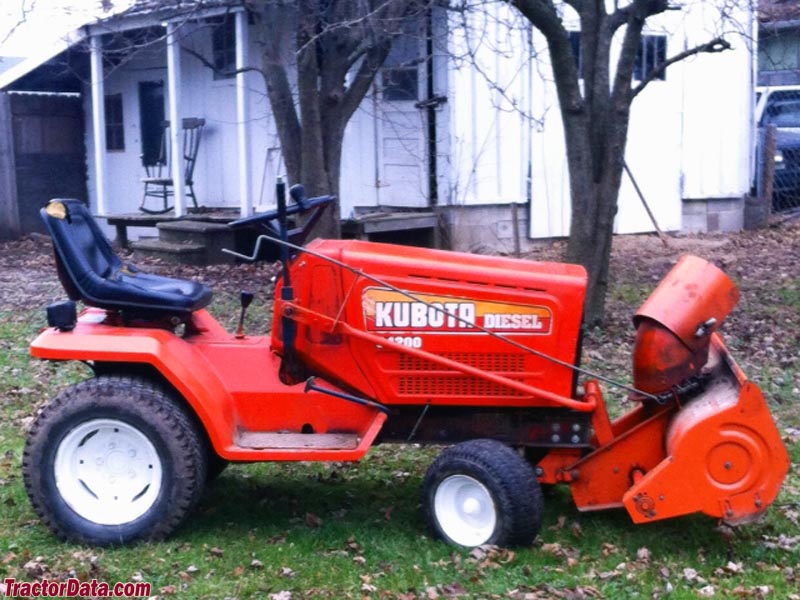

| Photos | |
 | |
 Kubota G4200 photos... | |
| Tractor hitch | |
| Rear Type | 0 OptOptional |
| Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Rear PTO Type | 2000 |
| Front PTO | independent |
| Clutch | manual idler pulley |
| Front PTO Type | 1-inch |
| Dimensions & Tires | |
| Wheelbase | 47.2 inches 119 cm |
| Weight | 683.5 to 694.5 pounds |
| Front tire | 16x6.50-8 |
| Rear tire | 23x10.50-12 |
 Full dimensions and tires ... | |
| Kubota G4200 attachments | |
| 40" mid-mount mower deck | |
| 44" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| G4200 Serial Numbers | |
| Location: | Left side of tractor frame, above front axle. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 35 |
| References | |
 | |
| Diesel Lawn and Garden Tractors published in 1984, by Kubota* | |
| *Publication contains known errors. |
