Cub Cadet 102 Transmission


Cub Cadet 102 lawn tractor photo
1965 - 1967
1X2/1X3 Series
Garden tractor
Series map:
71
102
122
7.0hp
10.0hp
12.0hp
Transmissions overview
3-speed gear
6-speed
Transmission
Typeshaft-driven gear
Gears3 forward and 1 reverse
Clutch114.3mm dry disc
Speeds

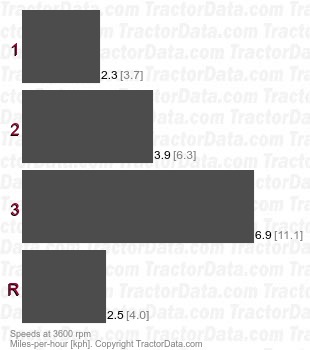

102  shaft-driven gear speeds

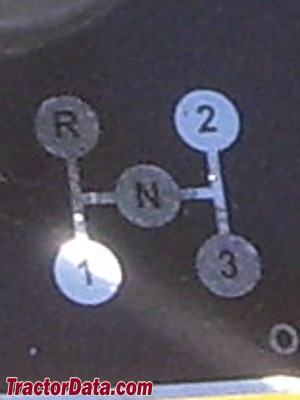

Shift Pattern
Cub Cadet 102 transmission controls

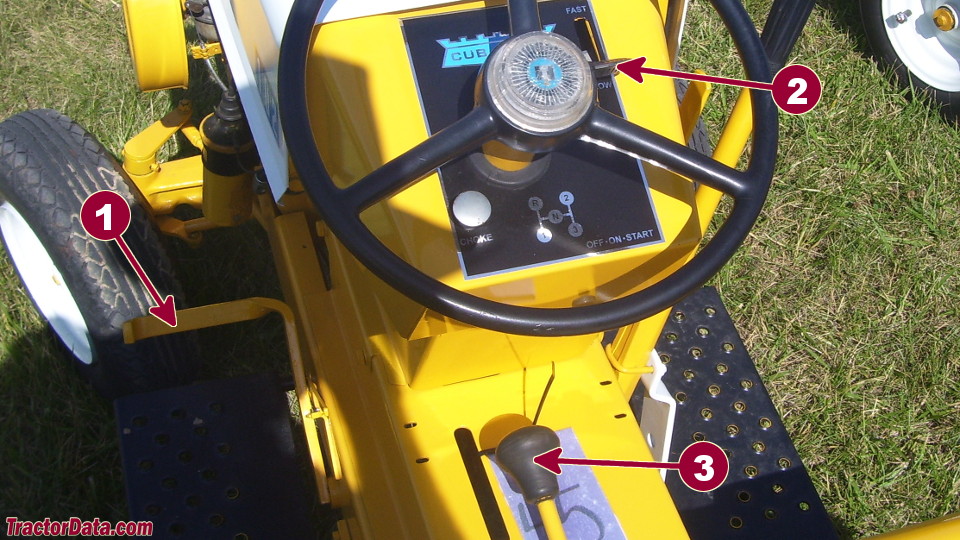

102 Transmission Controls
Cub Cadet 102 transmission controls
1Clutch/brake
2Throttle
3Gear shift
Transmission
Transmissioncreeper
Gears6 forward and 2 reverse
Speeds

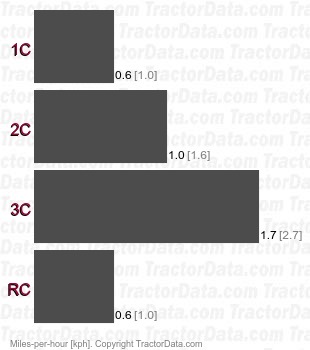

102 creeper  speeds
