| | 1965 - 1967 |
| 1X2/1X3 Series | | Garden tractor |
|
Series map:
71
102
7.0hp
10.0hp
| Transmission options |
| 3-speed gear |
| 6-speed creeper |
| Transmission |
| Type | shaft-driven gear
|
| Gears | 3 forward and 1 reverse
|
| Clutch | 114.3mm dry disc
|
| Oil capacity | 3.5 qts
3.3 L
|
| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 6 forward and 2 reverse
|
| Speeds |
|

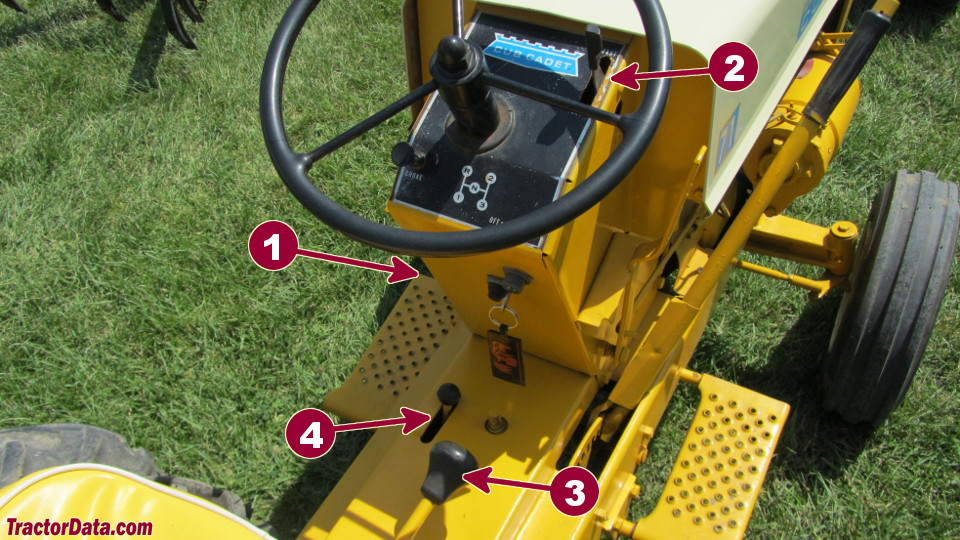

| 71 Transmission Controls |
 |
| 1 | Clutch/Brake Pedal
|
| 2 | Throttle
|
| 3 | Gear Shift
|
| 4 | Range Shift
|
