Cub Cadet GT 2544 Transmission


Cub Cadet GT 2544 lawn tractor photo
2005 - 2010
2500 Series
Garden tractor
Series map:
GT 2542
GT 2544
GT 2550
20.0hp
20.0hp
22.0hp
Transmission
TransmissionHydro-Gear BDU-10
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity5.7 qts
5.4 L
Oil type
Drive System Fluid Plus
Oil change100 h

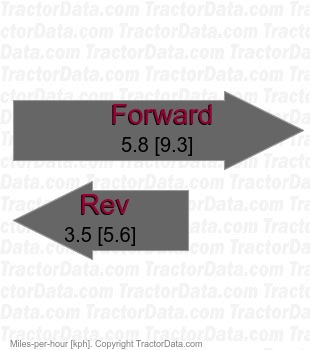

Speeds
GT 2544 BDU-10 shaft-driven hydrostatic speeds

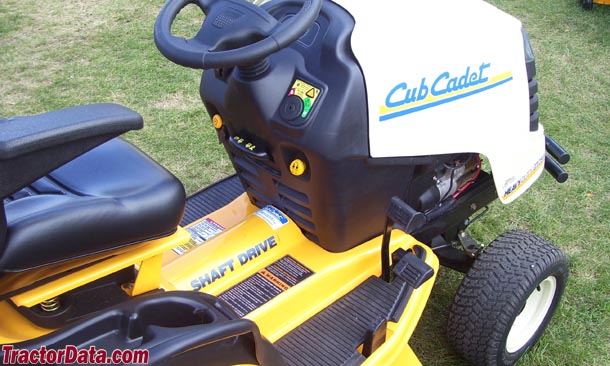

GT 2544 Transmission Controls
Cub Cadet GT 2544 transmission controls
1Throttle
2Parking brake
3Brake
4Forward
5Reverse
