Cub Cadet GT 2544 Engine


Cub Cadet GT 2544 lawn tractor photo
2005 - 2010
2500 Series
Garden tractor
Series map:
GT 2542
GT 2544
GT 2550
20.0hp
20.0hp
22.0hp
Engines overview
20HP Kohler 624cc 2-cyl gasoline
21HP Kohler 624cc 2-cyl gasoline
22HP Kohler 671cc 2-cyl gasoline
Engine Detail
Kohler CH20S
gasoline
2-cylinder
air-cooled horizontal-shaft V-twin
The Kohler CH20 was used in the GT 2544 in 2005.
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)20 hp
14.9 kW
Rated RPM3350
Idle RPM1400-3600
Torque32.7 lb-ft
44.3 Nm
Torque RPM2400
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

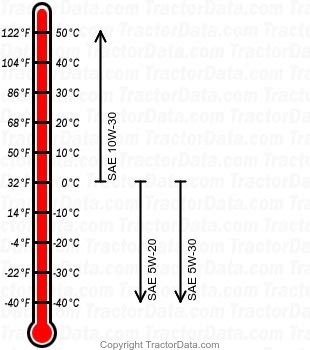

GT 2544 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change100 h
Engine Detail
Kohler CH21S
gasoline
2-cylinder
air-cooled horizontal-shaft V-twin
The Kohler CH21 was used in the GT 2544 from 2006 through 2008.
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)21 hp
15.7 kW
Rated RPM3350
Idle RPM1400-3600
Torque36.2 lb-ft
49.1 Nm
Torque RPM2400
Sparkplug gap0.030 inches
0.762 mm
Engine Oil
GT 2544 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change100 h
Engine Detail
Kohler CH670S
gasoline
2-cylinder
air-cooled horizontal-shaft V-twin
The Kohler CH670 was used in the GT 2544 from 2008 through 2010.
Displacement671 cc
41 ci
Bore/Stroke3.15x2.64 inches
80 x 67 mm
Power (gross)22 hp
16.4 kW
Rated RPM3350
Idle RPM1400-3600
Torque36.2 lb-ft
49.1 Nm
Torque RPM2400
Oil capacity2 qts
1.9 L
Sparkplug gap0.030 inches
0.762 mm
