Sabre 1642HS

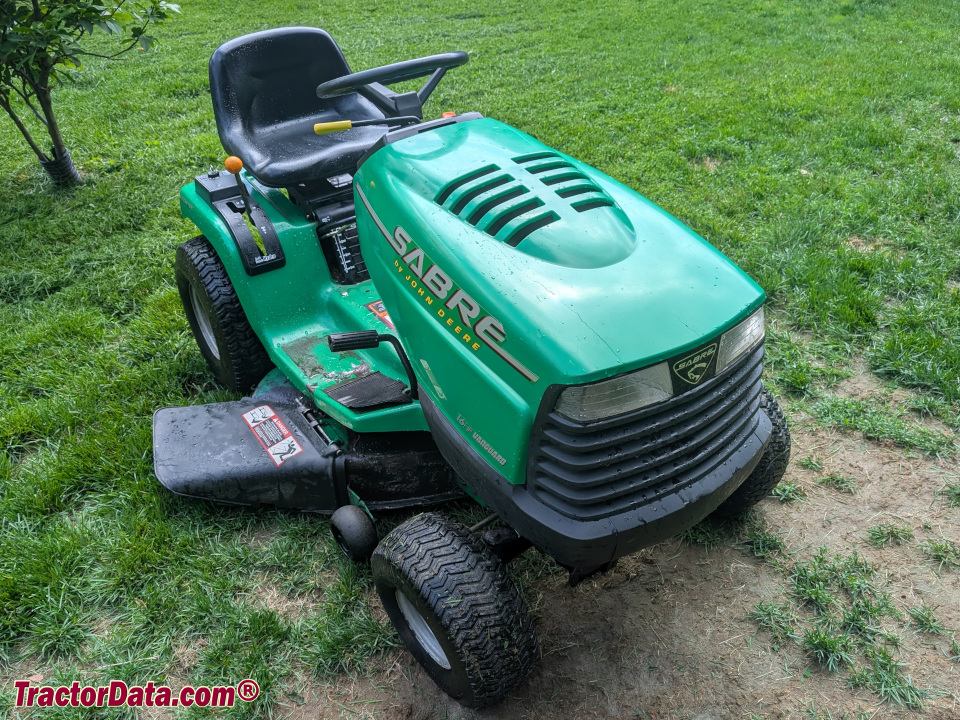

Sabre 1642HS lawn tractor photo
1998 - 2002
Model year
Lawn tractor
Series map:
1542HS
1642HS
1646HS
15.5hp
16.0hp
16.0hp
Production
ManufacturerSabre (a part of John Deere)
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $1,659 in 2002
Variants
Sabre 1642HS Engine
16HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank1.25 gal
4.7 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Photos
No photos of the Sabre 1642HS are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase44.7 inches
113 cm
Weight396 lbs
179 kg
Front tire15x6-6
Rear tire20x8-8
Full dimensions and tires ...
Sabre 1642HS attachments
42" mid-mount mower deck
snowblower
blade
Attachment details ...
1642HS Serial Numbers

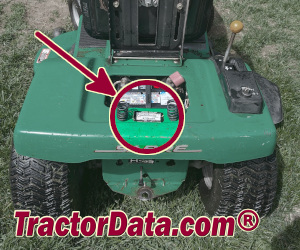

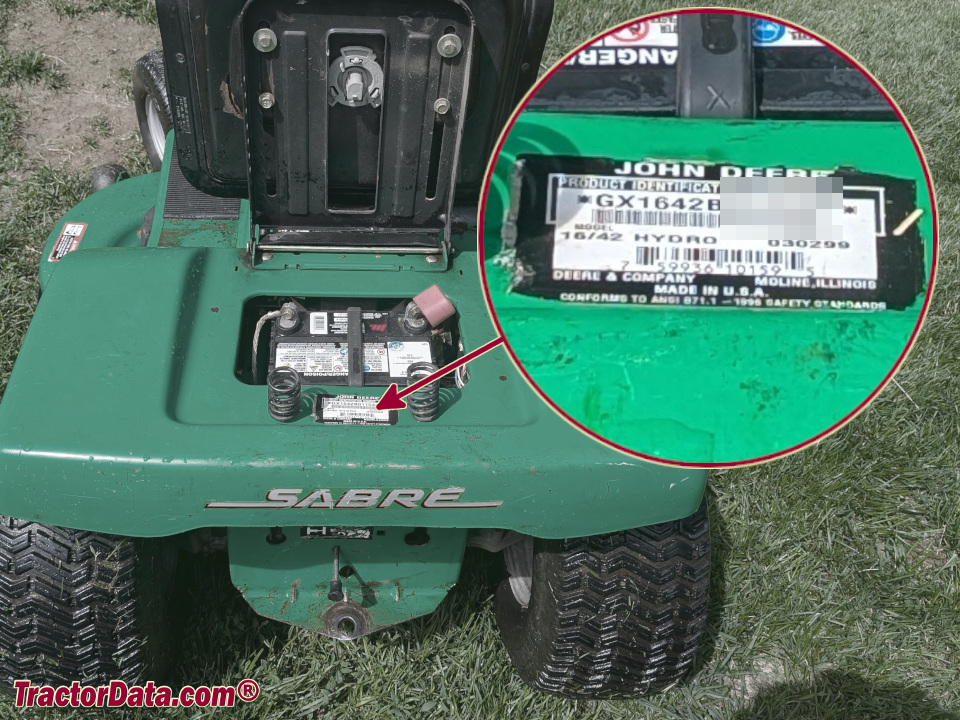

Location:Serial number decal on the rear fender deck, under the tractor's seat.
Electrical
Groundnegative
Charging systemunregulated
Charging amps3
Battery CCA230
Battery volts12
Battery GroupU1
References
1642HS references literature
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Lawn & Grounds Care Sales Manual published in 1997, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Operator's Manual Sabre Lawn Tractors (OMGX10226) published in 1997
Operator's Manual Sabre Lawn Tractors (OMGX10143) published in 1997
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 1999, by John Deere
Sabre Lawn Tractors published in 2002, by John Deere
