John Deere X700


John Deere X700 lawn tractor photo
2006 - 2012
Select X700 Series
Garden tractor
Series map:
X700
X720
23.0hp
27.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $8,299 in 2011
John Deere X700 Engine
23HP Kawasaki 745cc 2-cyl gasoline
Fuel tank6.5 gal (2006-2010)
24.6 L
 5.2 gal (2011+)
19.7 L
Engine details ...
Mechanical
Two-wheel drive
Differential lockfoot-activated standard
Steeringhydrostatic power
Wet disc brakes
Open operator station featuring 15-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab.
Hydraulics
Pressure924 psi
63.7 bar
Valves2 OptOptional
Total flow4.5 gpm
17.0 lpm
Tractor hitch
Rear Type0 OptOptional
 1-Limited OptOptional
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear RPM540
Mid PTOindependent
Mid RPM2000
Front PTOoptional
Front RPM2000
Dimensions & Tires
Wheelbase54.5 inches
138 cm
Weight840 lbs
381 kg
Front tire18x8.5-8
Rear tire26x12-12
Full dimensions and tires ...
John Deere X700 attachments
48" mid-mount mower deck
54" mid-mount mower deck
62" mid-mount mower deck
60" mid-mount mower deck
front-end loader
Attachment details ...
X700 Serial Numbers
2006010001
2007020001
2008030001
2009040001
2010050001
2011060001
2012070001

FAQ: How to read a serial number table.
X700 Serial Location
John Deere X700 serial number location
On the center-right of main tractor frame, just behind hydraulic couplers.
Electrical
Groundnegative
Charging systemalternator
Charging amps20
 40 (optional)
Battery CCA340
Battery volts12
References

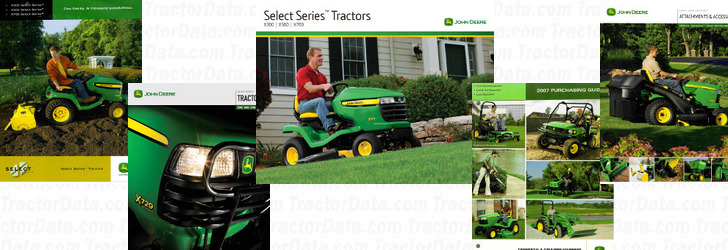

X700 references literature
Select Series Tractors published in 2007, by John Deere
Select Series Tractors published in 2009, by John Deere
Select Series Tractors published in 2012, by John Deere
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
Riding Lawn Equipment Attachments & Accessories published in 2011, by John Deere
