John Deere GT235 Engine


John Deere GT235 lawn tractor photo
1999 - 2005
GT200 Series
Garden tractor
GT275
Series:GT225GT235GT245
Engines overview
18HP Kawasaki 570cc 2-cyl gasoline
18HP Briggs & Stratton 570cc 2-cyl gasoline
Engine Detail
Kawasaki FH580V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
The Deere GT235 used the Kawasaki engine from 2003 to the end of production.
Displacement570 cc
34.8 ci
Bore/Stroke2.80x2.75 inches
71 x 70 mm
Power (gross)18 hp
13.4 kW
Air cleanerdry with foam precleaner
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

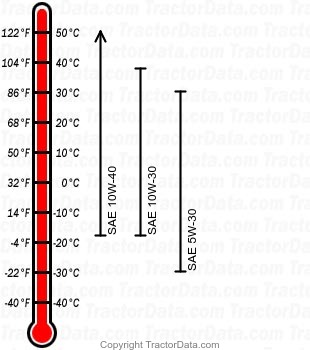

GT235 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
John Deere GT235 Engine
John Deere GT235 engine image
Engine Detail
Briggs & Stratton 350777
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
The Briggs 350777 engine was used in the Deere GT235 until 2003, serial number 090000.
Displacement570 cc
34.8 ci
Bore/Stroke2.83x2.75 inches
72 x 70 mm
Power (gross)18 hp
13.4 kW
Air cleanerfoam pre-cleaner and paper element
Sparkplug gap0.030 inches
0.762 mm
Engine Oil
GT235 gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
