John Deere GT225 Engine


John Deere GT225 lawn tractor photo
1999 - 2003
GT200 Series
Garden tractor
GT242
Series:GT225GT235
Engines overview
15HP Kohler 426cc 1-cyl gasoline
16HP Kohler 458cc 1-cyl gasoline
Engine Detail
Kohler CV15S
gasoline
1-cylinder
air-cooled
The Kohler CV15 was used on the Deere GT225 from the start of production until 2002, serial number 060000.
Displacement426 cc
26 ci
Bore/Stroke3.55x2.64 inches
90 x 67 mm
Power (gross)15 hp
11.2 kW
Air cleanerdry with foam precleaner
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

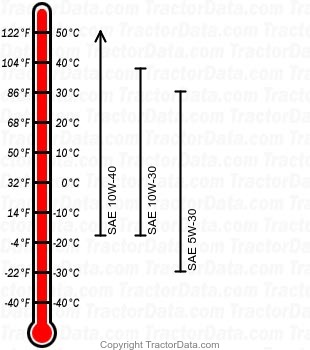

GT225 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
Engine Detail
Kohler CV460S
gasoline
1-cylinder
air-cooled vertical-shaft
The John Deere GT225 used the Kohler CV460 engine from 2002 until the end of production.
Displacement458 cc
28 ci
Bore/Stroke3.43x3.03 inches
87 x 77 mm
Power (gross)16 hp
11.9 kW
Air cleanerfoam pre-cleaner and paper element
Engine Oil
GT225 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
