John Deere 400 Transmission


John Deere 400 lawn tractor photo
1975 - 1983
400 Series
Garden tractor
Series map:
400
19.9hp
Transmission
TransmissionSundstrand
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity5.5 qts
5.2 L
Oil type
Low-Viscosity Hy-Gard
Oil change500 h

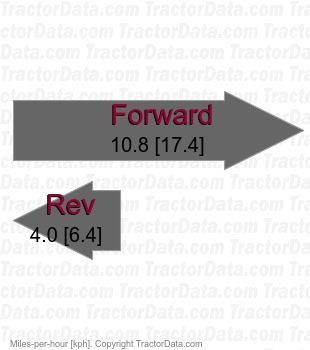

Speeds
400  shaft-driven hydrostatic speeds

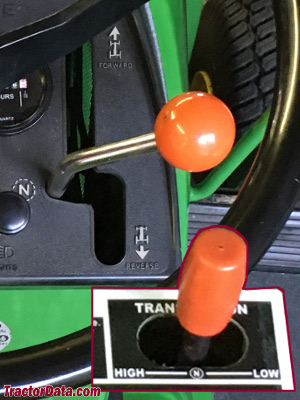

Shift Pattern
John Deere 400 transmission controls

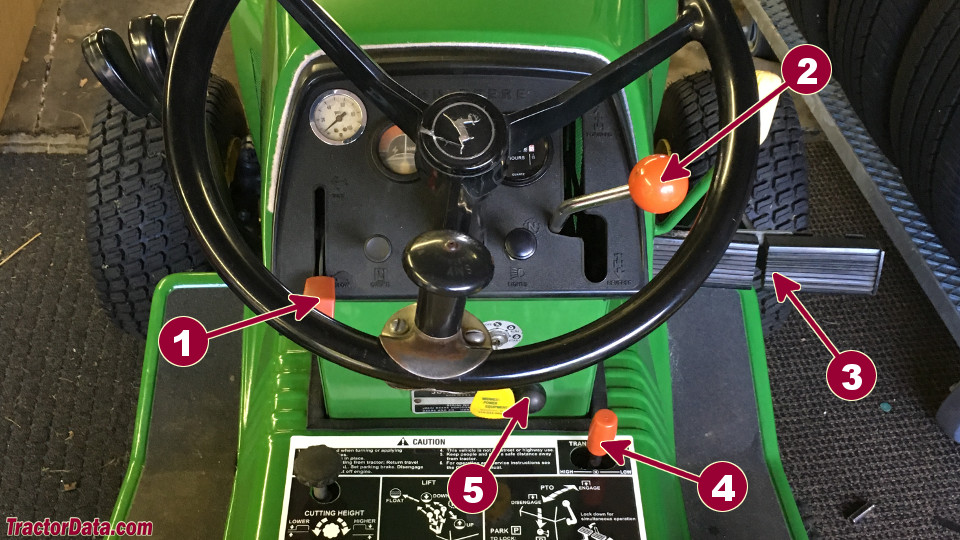

400 Transmission Controls
John Deere 400 transmission controls
1Throttle
2Forward/Reverse
3Brakes
4Range shift
5Parking brake
