John Deere 214


John Deere 214 lawn tractor photo
1975 - 1987
200 Series
Garden tractor
Series map:
212
214
216
12.0hp
14.0hp
16.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $3,429 in 1983
John Deere 214 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Band brakes
Open operator station.
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight695 lbs
315 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
John Deere 214 attachments
38" mid-mount mower deck
46" mid-mount mower deck
snowblower
blade
Attachment details ...
214 Serial Number Location

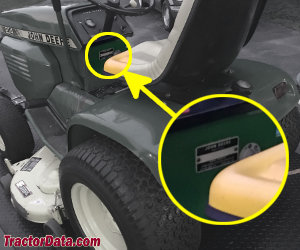

John Deere 214 serial number location
Serial number plate below the steering column.
214 Serial Numbers
197530001
197655001
197770001
197880001
197995001
1980120001
1981155001
1982190001
1983222001
1984285001
1985315001
1986360001
1987420001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery volts12
References
214 references literature
Lawn and Garden Tractors published in 1975, by John Deere
Lawn and Garden Tractors published in 1976, by John Deere
Lawn and Garden Tractors published in 1978, by John Deere
Lawn and Garden Tractors published in 1979, by John Deere
John Deere Lawn & Garden Equipment published in 1980
Lawn and Garden Tractors published in 1980, by John Deere
Lawn and Garden Tractors published in 1982, by John Deere
Lawn & Garden Tractors published in 1983, by John Deere
Lawn & Garden Tractors published in 1984, by John Deere
Lawn & Garden Tractors published in 1985, by John Deere
Lawn & Garden Tractors published in 1986, by John Deere
Introducing the John Deere lawn and garden line for 1979
John Deere Lawn and Garden Equipment published in 1978
Consumer Products Price List published in 1983, by John Deere
Grounds Care Equipment Purchasing Guide published in 1983, by John Deere
214 manuals literature
Operator's Manual 200, 210, 212, and 214 (OM-M48245) published in 1975
Operator's Manual 210, 212, 214, and 216 (OM-M83517) published in 1979
Service Manual 200, 210, 212 and 214 (SM-2105) published in 1976
Operator's Manual 31 Integral Rotary Tiller (OMM49210)
Operator's Manual 37A Snowthrower (OMM89616)
Operator's Manual 38-Inch Mid-Mount Rotary Mower (200 and 300 Series) (OMM71721) published in 1986
Operator's Manual 39 and 47 Rotary Mowers (OMM48953)
Operator's Manual 39 Rotary Mower (OMM86121)
