John Deere 120

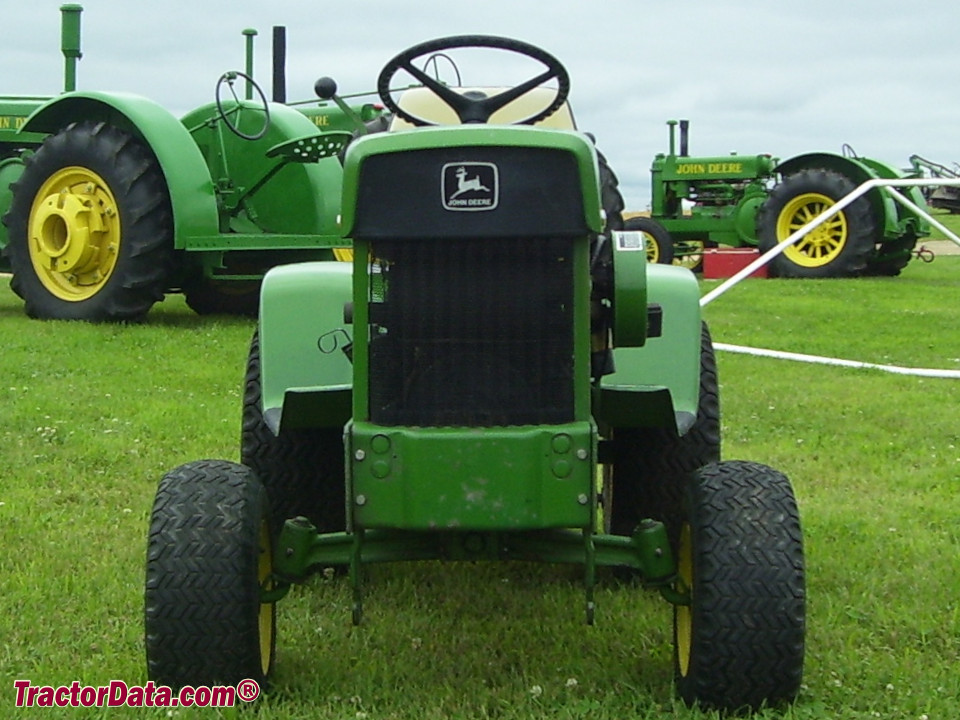

John Deere 120 lawn tractor photo
1970 - 1971
100 Series
Garden tractor
Series map:
112
120
140
10.0hp
12.0hp
12.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
John Deere 120 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank1.75 gal
6.6 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight736 lbs
333 kg
Front tire16x6.50-8
Rear tire23x8.50-12
Full dimensions and tires ...
John Deere 120 attachments
38" mid-mount mower deck
46" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
120 Serial Number Location

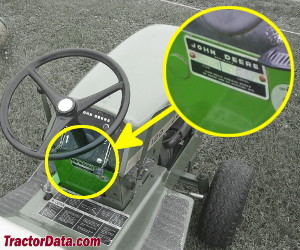

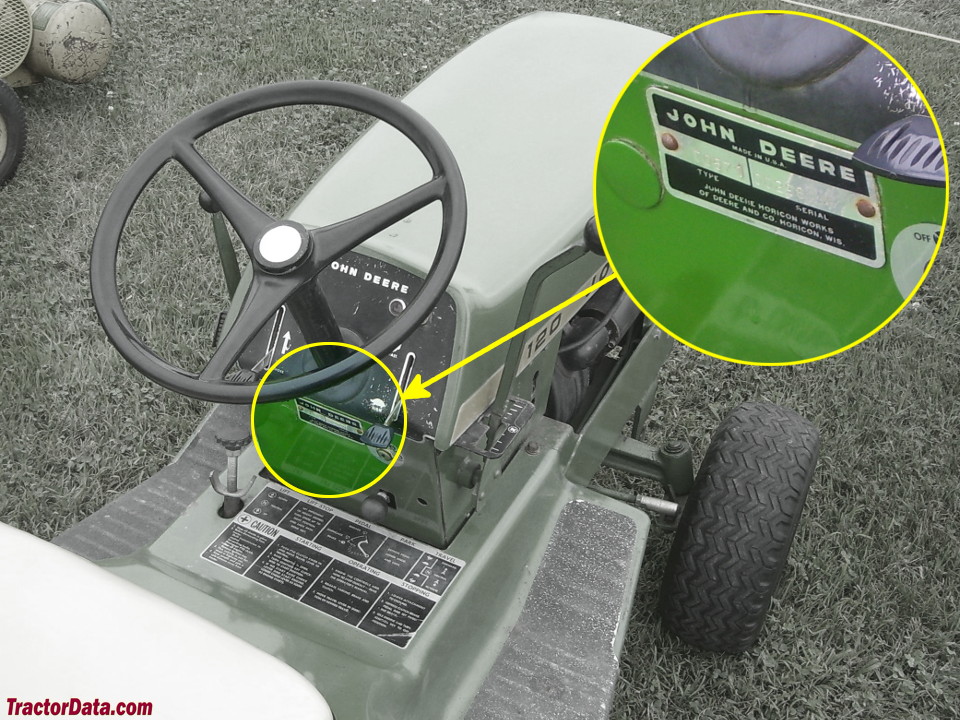

John Deere 120 serial number location
Serial number plate below the instrument panel.
120 Serial Numbers
19701001
19717500

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
Battery AH14
References
120 references literature
Lawn and Garden Equipment published in 1970, by John Deere
Loaders for John Deere Lawn & Garden Tractors published in 1970, by Johnson
Loaders for John Deere Lawn & Garden Tractors published in 1971, by Johnson
120 manuals literature
Operator's Manual 120 (OM-M44400) published in 1969
Operator's Manual 41 and 48 Rotary Mowers (OMM49677)
Operator's Manual 43C and 54C Center Blade (OMM45478) published in 1970
Operator's Manual 49 Snowthrower (OMM89078) published in 1986
