John Deere 110 Attachments


John Deere 110 tractor photo
1963 - 1974
Model year
100 Series
Garden tractor
Series map:
110
112
7.0hp
10.0hp
Attachment overview
38" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
38" Mower deck
Typemid-mount John Deere 38
 3-blade, lift is manual or hydraulic OptOptional
Cutting width38 inches
96 cm
BeltM40223M
Weight102 lbs
46 kg
Overall width44 inches
111 cm
Cut height1.5 to 3.5 inch
3 to 8 cm

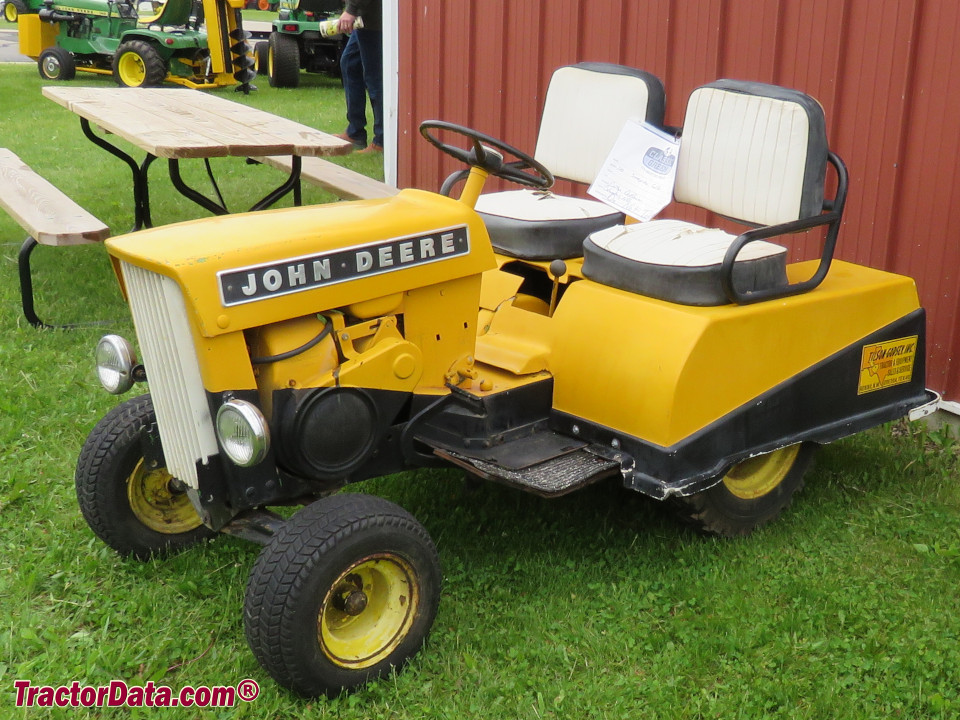

John Deere 110 with Sweepster Transporter golf cart attachment.
John Deere 110 with Sweepster Transporter golf cart attachment.
Photos courtesy of Peter Easterlund

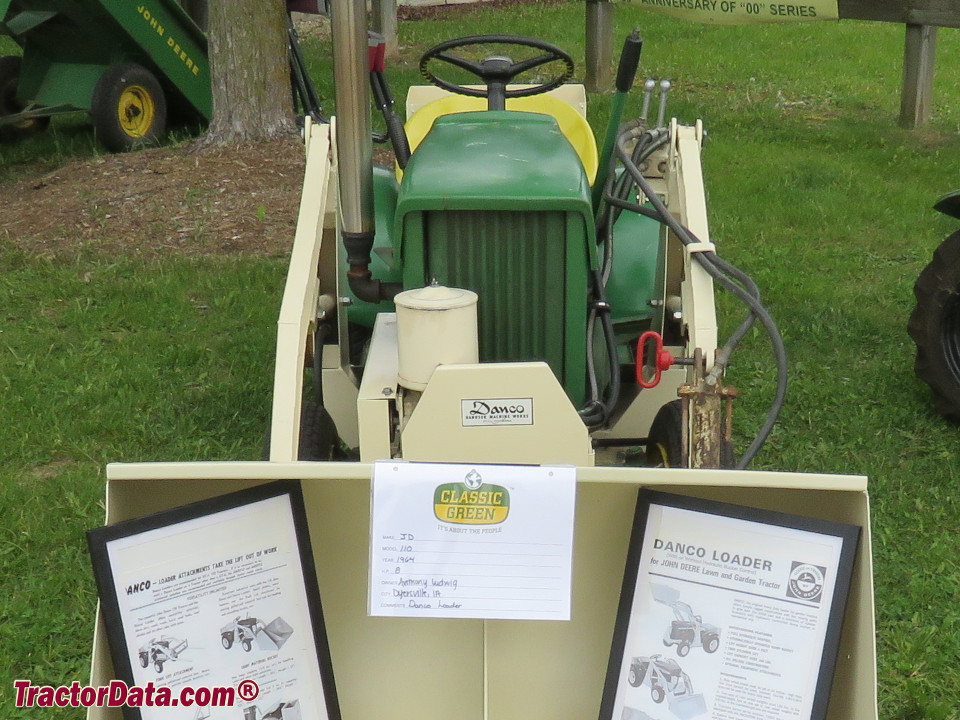

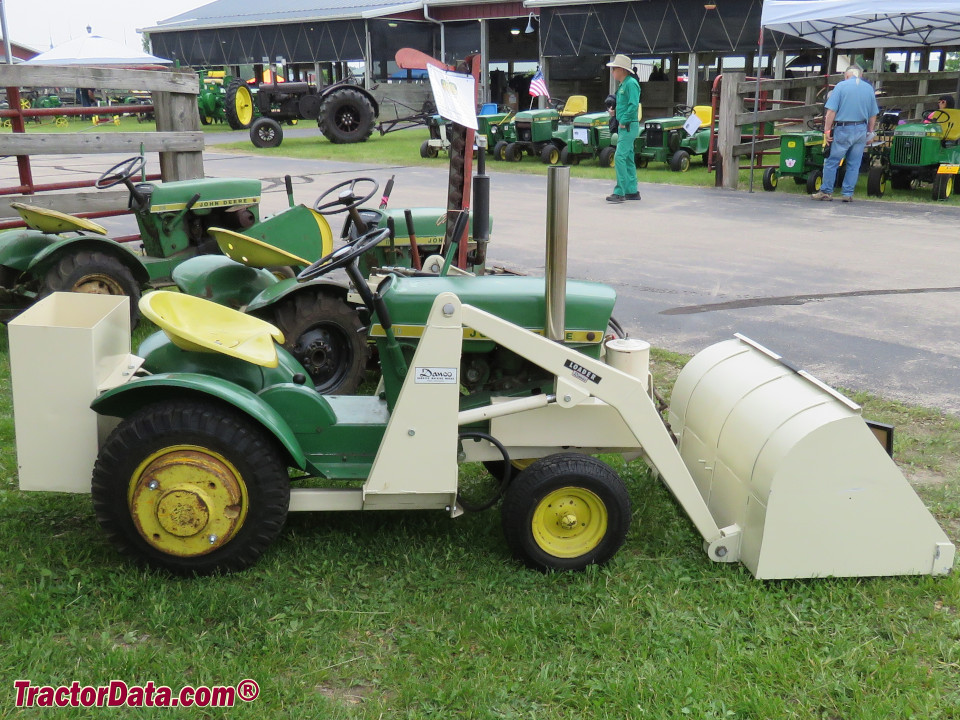

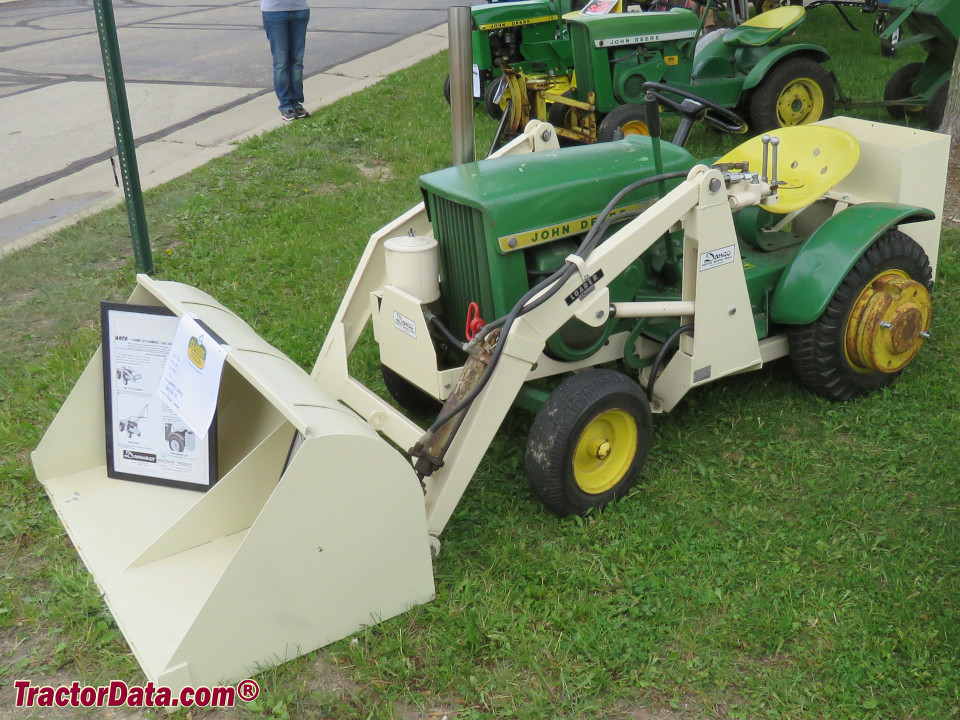

1964 John Deere 110 with Danco front-end loader.
1964 John Deere 110 with Danco front-end loader. (3 images)
Photos courtesy of Peter Easterlund
John Deere 110 with front 540-rpm PTO attachment.
John Deere 110 with front 540-rpm PTO attachment.
Photos courtesy of Peter Easterlund

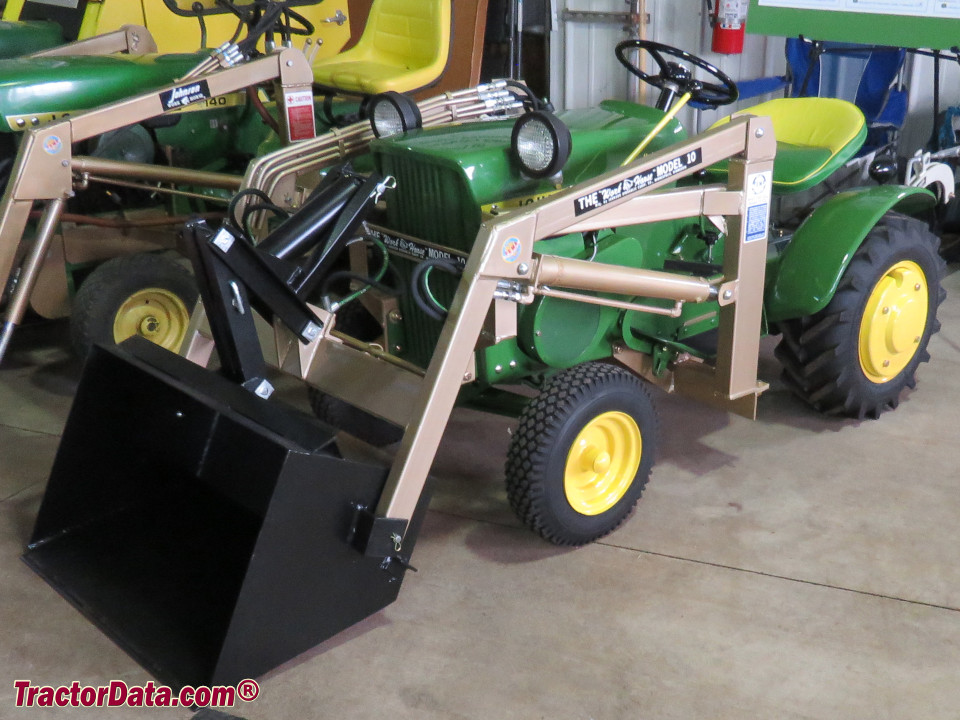

John Deere 110 with Johnson 10 front-end loader.
John Deere 110 with Johnson 10 front-end loader.
Photos courtesy of Peter Easterlund
42" Blade
John Deere 42
front-mount
42 inches width
106 cm
16 inches height
40 cm
8 inches lift
20 cm
manual-lift
manual-angle
36" Snow blower
John Deere 36
36 inches width
91 cm
front-mount
Johnson 10 Loader
300 lbs lift (full at pin)
136 kg
625 lbs breakout (bucket)
283 kg
43.25 inches clearance (dumped)
109 cm
weight: 220 lbs
99 kg
Bucket width: 30 inches
76 cm
Bucket width: 48 inches
121 cm
