Allis Chalmers TL-20
| Production |
| Manufacturer | Allis Chalmers
|
| Wheel Loader |
| Built in Deerfield, Illinois, USA |
| Allis Chalmers TL-20 Power |
| Engine (gross) | 130 hp
96.9 kW
|
| Mechanical |
| Drive | 4x4 4WD
|
| Final drives | planetary
|
| Power steering |
| Hydraulic brakes |
| Open operator station. Cab optional with heater. |
| Photos |
| No photos of the Allis Chalmers TL-20 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 39 gal
147.6 L
|
| Hydraulic system | 33.75 gal
127.7 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 33.75 gal
127.7 L
|
| Pressure | 1300 psi
89.6 bar
|
| Pump flow | 63 gpm
238.5 lpm
|

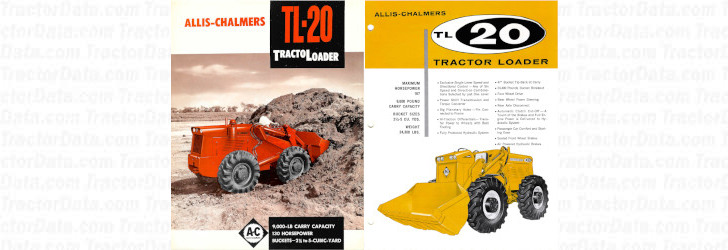

| References |
 |
| TL-20 TractoLoader published in 1959, by Allis-Chalmers |
| TL 20 Tractor Loader published in 1963, by Allis-Chalmers |
| Page information |
 |
| Copyright 2025 TractorData.com® |
| Email me: Peter@TractorData.com |
| TractorData is a family-owned small business located in Minnesota. I have been researching tractor history and providing specifications for free since 1999. |
| Peter Easterlund - owner/author |
| This machine's data modified on October 28, 2025 |
