Allis Chalmers 745
| | 1967 - 1973 |
| 45 Series | | Wheel Loader |
|
Series map:
645
745
165.0hp
202.0hp
| Production |
| Manufacturer | Allis Chalmers
|
| Wheel Loader |
| Built in Deerfield, Illinois, USA |
| Total built | 948
|
| Allis Chalmers 745 Power |
| Engine (net) | 202 hp
150.6 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | planetary
|
| Articulated power steering |
| Open operator station. Cab optional with air-conditioning. |
| Photos |
| No photos of the Allis Chalmers 745 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | open center
|
| Pressure | 1800 psi
124.1 bar
|
| Pump flow | 94 gpm
355.8 lpm
|
| Steering flow | 36 gpm
136.3 lpm
|

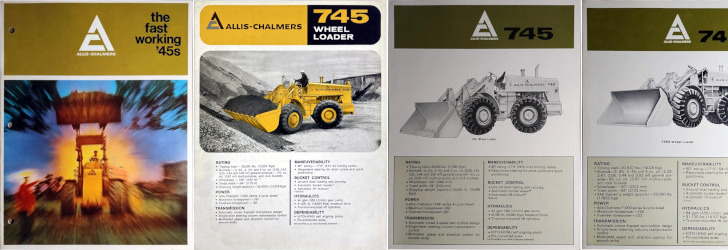

| References |
 |
| The fast working '45s published in 1970, by Allis Chalmers |
| 745 Wheel Loader published in 1967, by Allis Chalmers |
| 745 published in 1970, by Allis Chalmers |
| 745H published in 1970, by Allis Chalmers |
