Tractors > J.I. Case > 550G

J.I. Case 550G Engine



J.I. Case 550G tractor photo
1995 - 1998
G Series
Bulldozer
Series map:
550G
75.0hp
Engine Detail
Case 4-390
diesel
4-cylinder
liquid-cooled
Displacement239 ci
3.9 L
Bore/Stroke4.02x4.72 inches
102 x 120 mm
Power (net)67 hp
50.0 kW
Power (gross)75 hp
55.9 kW
Rated RPM2200
Torque186 lb-ft
252.2 Nm
Torque RPM1450
Starterelectric
Starter volts12
Oil capacity11.2 qts
10.6 L
Coolant capacity16.5 qts
15.6 L
J.I. Case 550G Engine

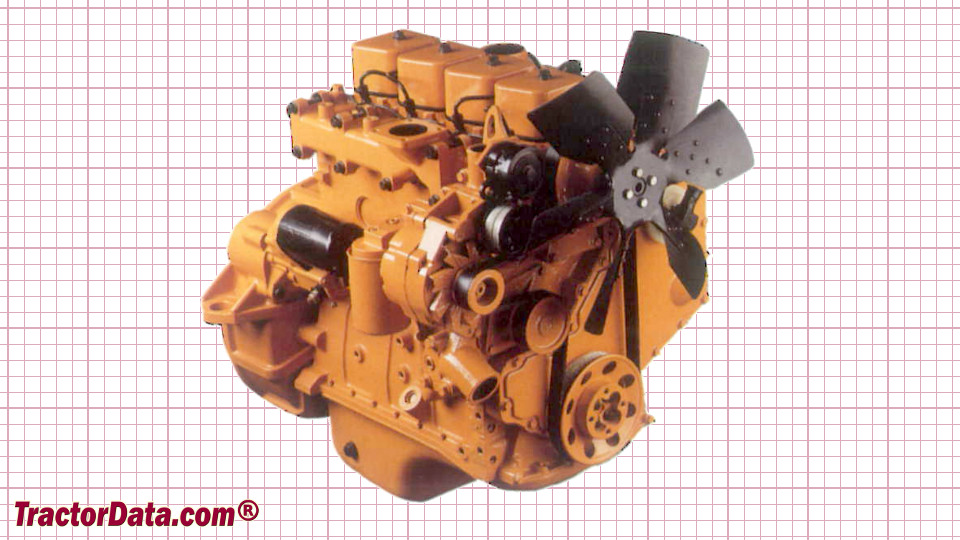

J.I. Case 550G engine image
