John Deere 440B

John Deere 440B industrial tractor photo
1970 - 1976
Series map:
ManufacturerJohn Deere
FactoriesDubuque, Iowa, USA
 Welland, Ontario, Canada
John Deere 440B Engine
John Deere 3.6L 4-cyl diesel
Fuel tank24 gal
90.8 L
Engine details ...
John Deere 440B Transmissions
8-speed partially synchronized
8-speed full power shift
Transmission details ...
John Deere 440B Power
Engine (gross)75.5 hp
56.3 kW
Engine (net)70 hp
52.2 kW
Four-wheel drive
Final drivesinboard planetary
Differential lockhydraulic front
Articulated power steering
Hydraulic wet disc brakes
Four-post ROPS.
No photos of the John Deere 440B are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Typeclosed center
Pressure2000 psi
137.9 bar
Pump flow28 gpm
106.0 lpm
Dimensions & Tires
Wheelbase89 inches
226 cm
Weight12250 to 14200 pounds
Front tire18.4-26
Rear tire18.4-26
Full dimensions and tires ...
Charging systemalternator
Battery volts12

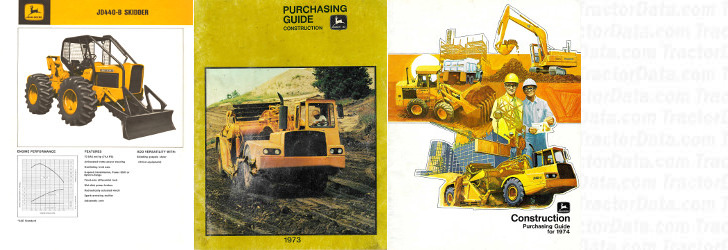

440B references literature
JD440-B Skidder published by John Deere
Construction Purchasing Guide published in 1973, by John Deere
Construction Purchasing Guide published in 1974, by John Deere
