Tractors > John Deere > 760A

John Deere 760A



John Deere 760A industrial tractor photo
1969 - 1975
Industrial tractor
760 ↑
Series:760A
Production
ManufacturerJohn Deere
TypeIndustrial tractor
FactoryWaterloo, Iowa, USA
John Deere 760A Engine
John Deere 8.7L 6-cyl diesel
Fuel tank69 gal
261.2 L
Engine details ...
John Deere 760A Transmission
8-speed power shift
Transmission details ...
John Deere 760A Power
Engine (gross)159 hp
118.6 kW
Engine (net)152 hp
113.3 kW
Mechanical
Chassis4x2 2WD
Final drivesinboard planetary
Differential lockhydraulic rear
Steeringpower
Brakeshydraulic wet disc
CabOpen operator station. Four-post ROPS and cab available.
Photos
No photos of the John Deere 760A are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center
Pressure2000 psi
137.9 bar
Pump flow26 gpm
98.4 lpm
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear RPM1000
Dimensions & Tires
Wheelbase95.5 inches
242 cm
Weight15250 to 15840 pounds
Front tire11.00-15
Rear tire23.5-25
Full dimensions and tires ...
Electrical
Charging systemalternator
Batteries2
Battery volts12
References

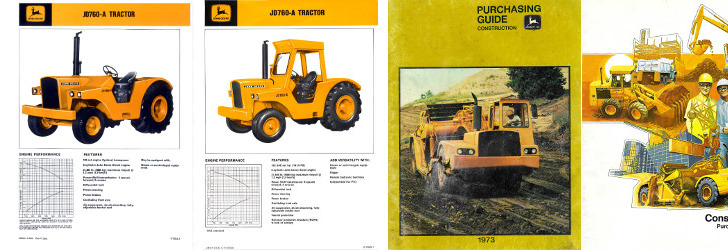

760A reference literature
JD760-A Tractor published in 1971, by John Deere
JD760-A Tractor published in 1972, by John Deere
