Allis Chalmers HD-16G
|
|
| Production | |
| Manufacturer | Allis Chalmers |
| Crawler Loader | |
| Built in Springfield, Illinois, USA | |
| Allis Chalmers HD-16G Engine | |
| 13.8L 6-cyl Allis Chalmers | |
 Engine details ... |
| Allis Chalmers HD-16G Transmission | |
| 3-speed torque converter | |
 Transmission details ... |
| Allis Chalmers HD-16G Power | |
| Engine (net) | 150 hp 111.9 kW |
| Mechanical | |
| Drive | crawler |
| Open operator station. | |
| Photos | |
| No photos of the Allis Chalmers HD-16G are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Capacity | |
| Fuel | 100 gal 378.5 L |
| Hydraulic system | 55 gal 208.2 L |
| Hydraulics | |
| Capacity | 55 gal 208.2 L |
| Dimensions & Tracks | |
| Weight | 48600 lbs 22044 kg |
| 20-inch tracks | |
 Full dimensions and tracks ... | |
| Allis Chalmers HD-16G attachments | |
| front-end loader | |
 Attachment details ... |

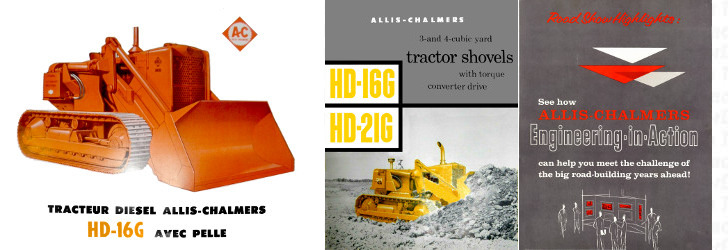

| References | |
 | |
| HD-16G published by Allis Chalmers | |
| HD-16G HD-21G published in 1961, by Allis Chalmers | |
| Engineering-in-Action published in 1956, by Allis Chalmers |
