John Deere 350 Loader


John Deere 350 Loader industrial tractor photo
1965 - 1970
Crawler Loader
Series:350 Loader450 Loader
Production
ManufacturerJohn Deere
TypeCrawler Loader
FactoryDubuque, Iowa, USA
Variants
350crawler
350CLcrawler-loader
John Deere 350 Loader Engines
John Deere 2.5L 3-cyl diesel
John Deere 2.2L 3-cyl gasoline
Engine details ...
John Deere 350 Loader Power
Engine (gross)46 hp
34.3 kW
Engine (net)42 hp
31.3 kW
Engine42 hp
31.3 kW
Drawbar (claimed)30 hp
22.4 kW
Mechanical
Chassiscrawler
CabOpen operator station.
Photos
No photos of the John Deere 350 Loader are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel22 gal
83.3 L
Hydraulic system5.75 gal (reservoir)
21.8 L
 12.5 gal (system)
47.3 L
Hydraulics
Typeopen center
Capacity5.75 gal (reservoir)
21.8 L
 12.5 gal (system)
47.3 L
Pressure2000 psi
137.9 bar
Pump flow23 gpm
87.1 lpm
Power Take-off (PTO)
Rear PTOtransmission OptOptional
Rear RPM540
Dimensions & Tracks
Weight11500 to 11570 pounds
12-inch tracks
Full dimensions and tracks ...
References

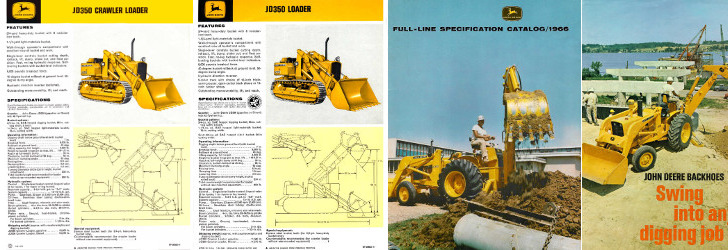

350 Loader reference literature
JD350 Crawler Loader published in 1965, by John Deere
350 Loader published in 1969, by John Deere
Full-Line Specification Catalog published in 1966, by John Deere
